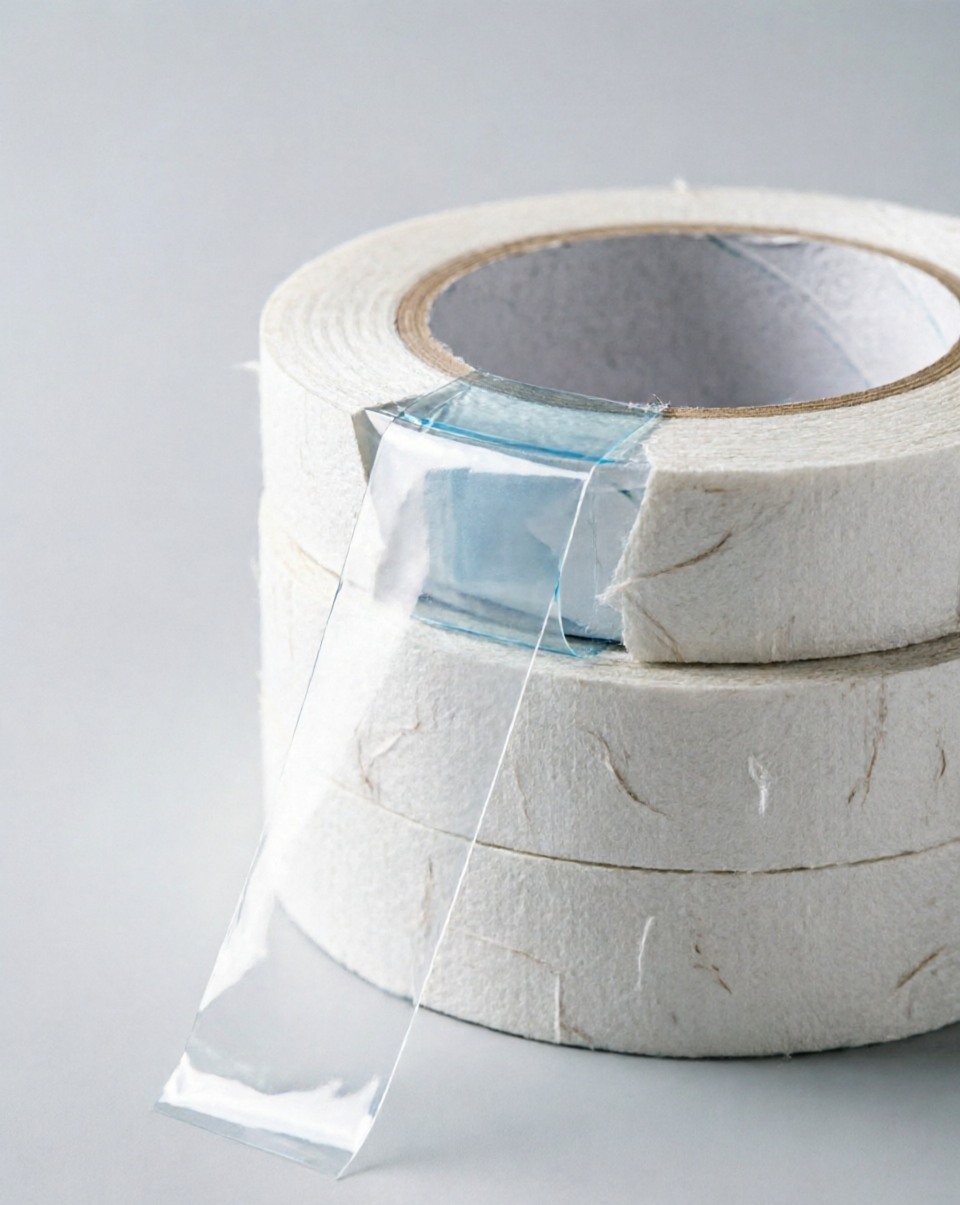

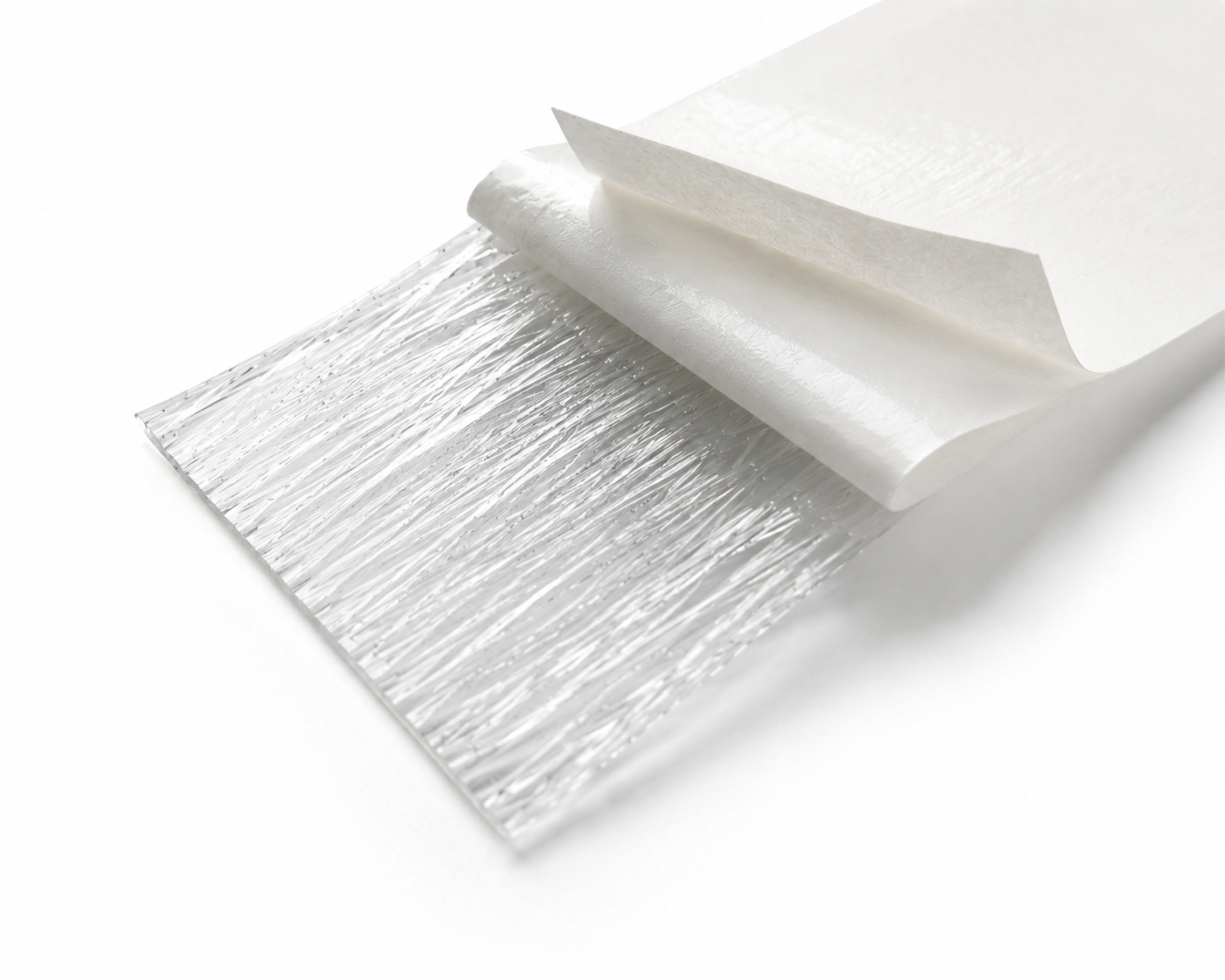

Ultimate Dimensional Stability: Engineered with a rigid, high-tensile transparent polyester (PET) film core that prevents stretching or warping during high-speed processing.

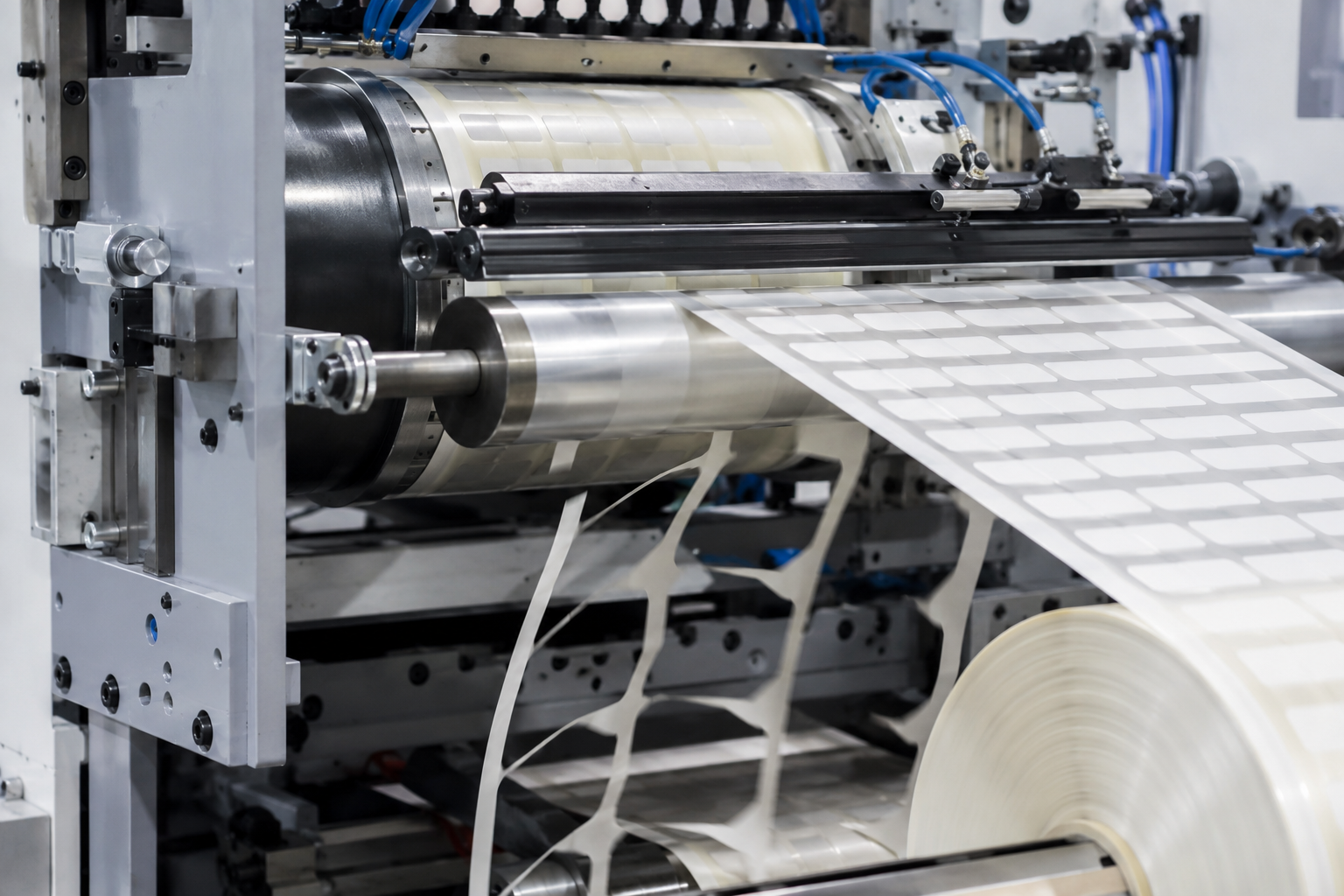

Precision Die-Cutting Friendly: Perfectly flat doublesided woodfree release paper ensures clean waste weeding and crisp stamping with zero edge-lifting.
High-Bond Acrylic Adhesive: Delivers permanent adhesion to both high and low surface energy materials, including aluminum emblems and PC/PET plastics.
Tier-1 Brand Alternative: Built with 30+ years of industrial coating expertise, offering equivalent performance to global premium technical tapes at a factory-direct wholesale cost.
In high-precision industrial processing, ordinary tissue or non-woven double-sided tapes often fail due to elongation under tension. Our sandwich-structured technical tape is purposefully designed to solve your manufacturing headaches:
Eliminate Processing Deformation: The structural PET film acts as a rigid matrix, neutralizing tensile stress so your stamped gaskets or spacers retain perfect size tolerances.
Streamline Waste Weeding: Standard adhesives can leave adhesive residue or cause liner tearing during high-speed stripping. Our premium siliconized woodfree paper liners peel away seamlessly, boosting your production yield.
Prevent Edge-Lifting on Curved Surfaces: The highcohesion acrylic adhesive formula ensures that cuf pieces won't experience lifting or flagging on plastic or metallic housings over time

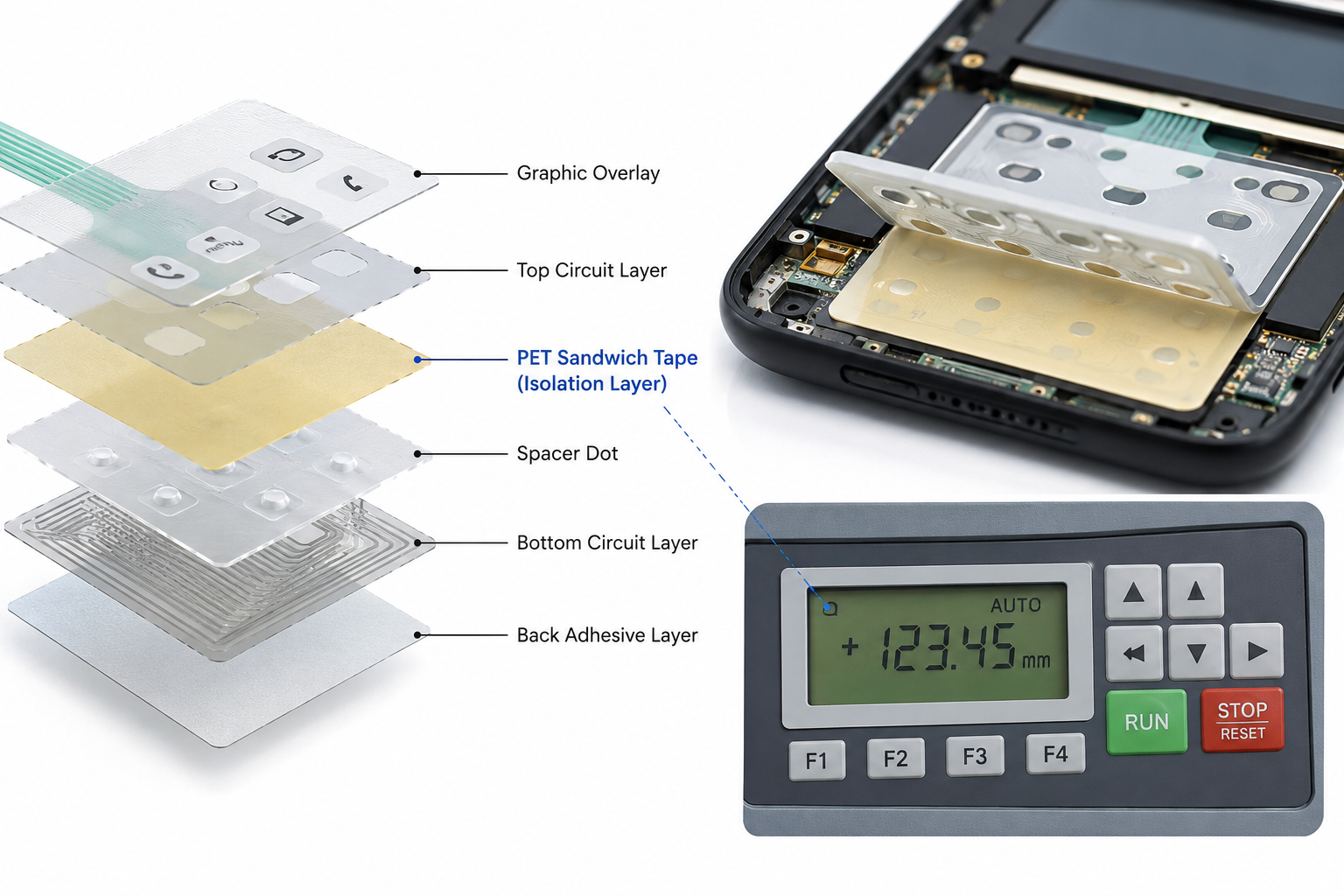

Serves as the ideal layer-to-layer insulating matrix in mechanical control panels, electronic keypads, and automotive touch displays.

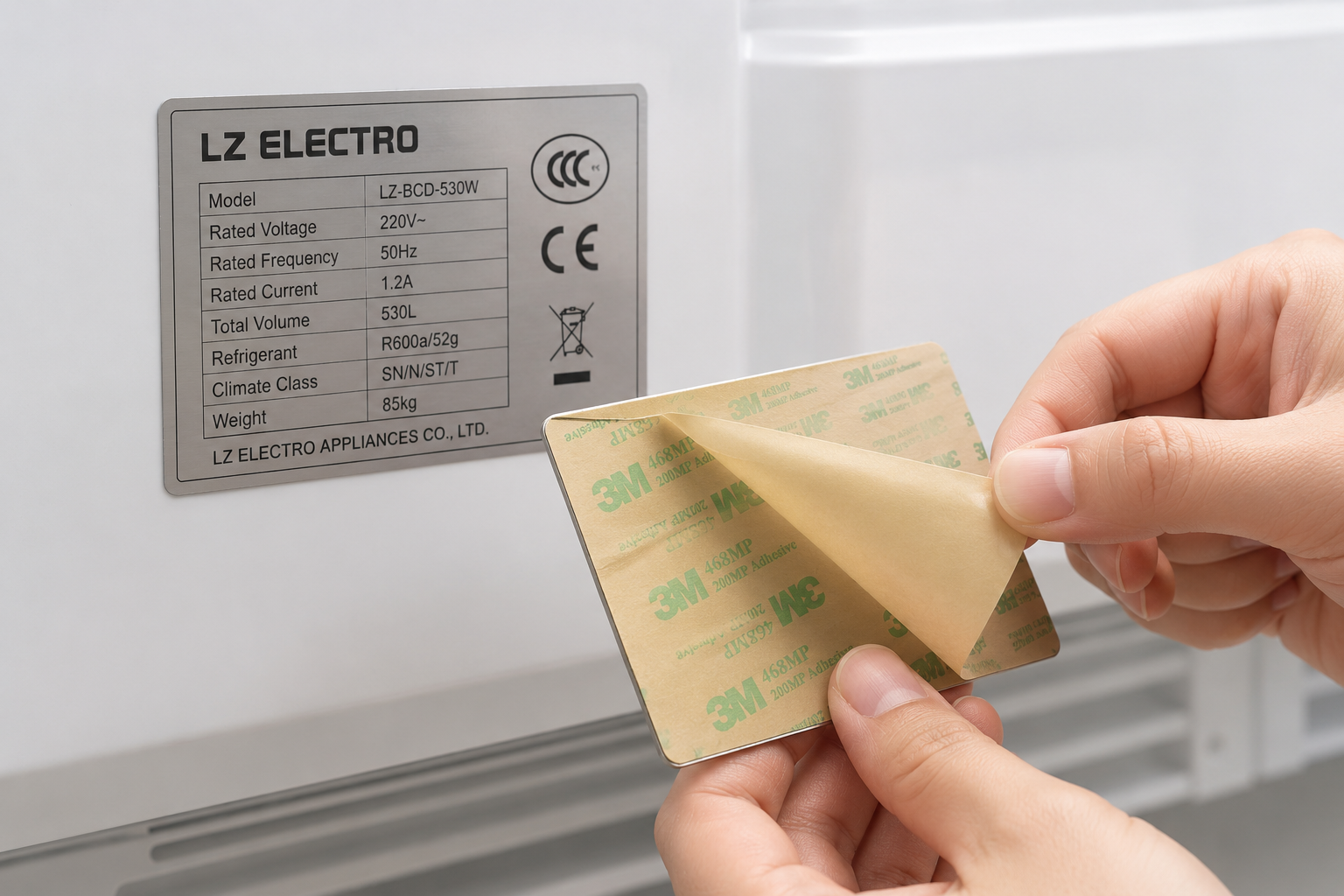

Heavy-duty, permanent attachment for home appliance metal logos, corporate corporate badges, and textured plastic overlays.
Provides ultra-flat, bubble-free fixation for LCD backlight modules, mobile phone screen frame assemblies, and internal die-cut gaskets.
| Property / Test Item | Performance Data | Test Method Reference |
|---|---|---|

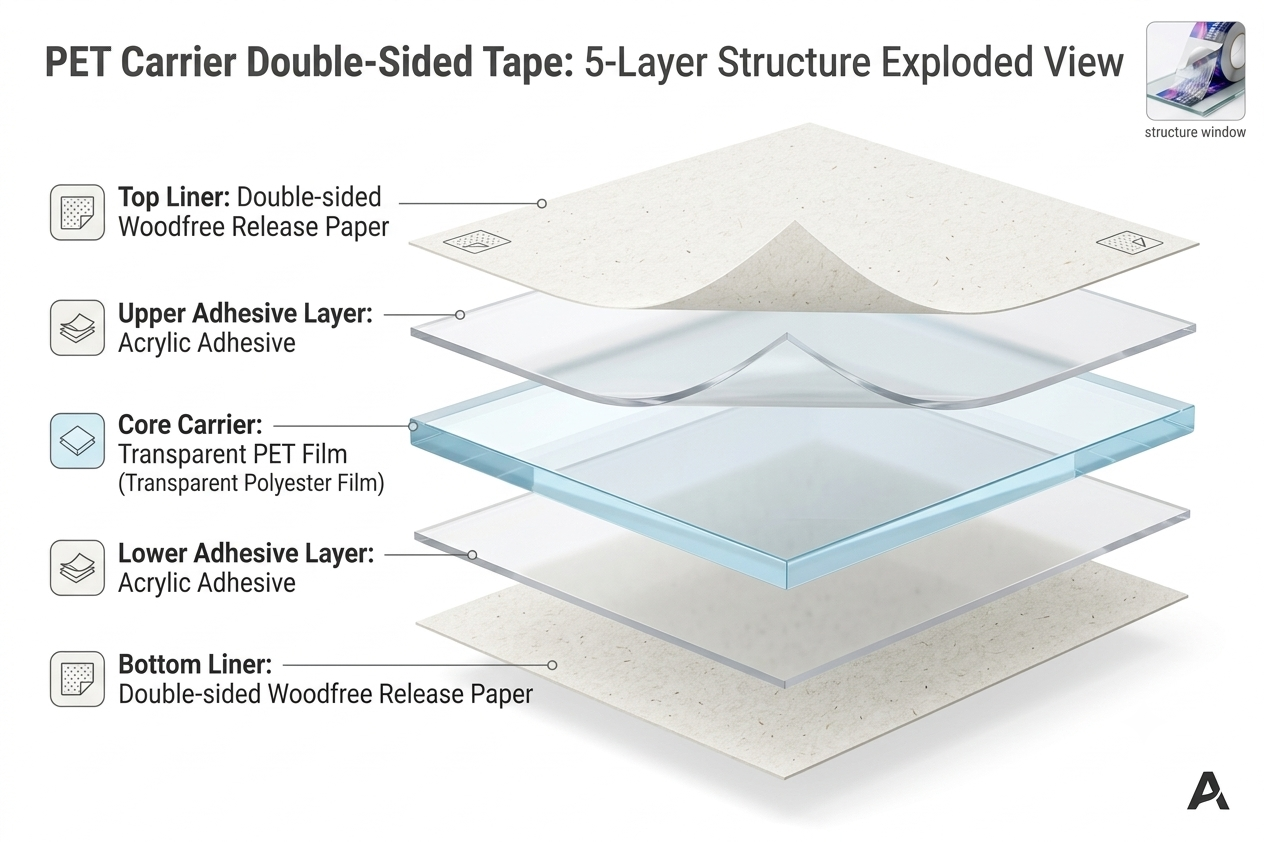

| Structure Matrix | Paper Liner + Acrylic Glue + PET Film Matrix + Acrylic Glue + Paper Liner | Physical Inspection |
| Carrier Matrix Film | High-tensile Transparent Polyester (PET) | Material Analysis |
| 180° Peel Adhesion (Initial Tack) | ≥ 18 N/25mm | GB/T 2792 / PSTC-101 |
| 180° Peel Adhesion (Ultimate Bond) | ≥ 24 N/25mm | GB/T 2792 / FINAT FTM1 |
| Holding Power / Static Shear | ≥ 48 Hours | GB/T 4851 / PSTC-107 |
| High-Temp Shear Resistance | ≥ 24 Hours (@ 70°C) | GB/T 4851 / FINAT FTM8 |
| Dimensional Stability / Shrinkage | ≤ 0.2% (MD/TD @ 100°C) | ASTM D1204 |
| Temperature Tolerance Range | Long Term: 80°C (176°F) | Short Term: 150°C (302°F) | Internal Oven Test |

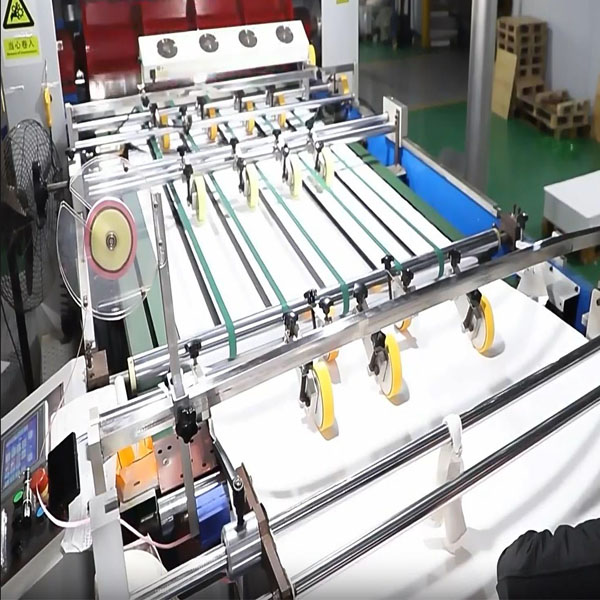

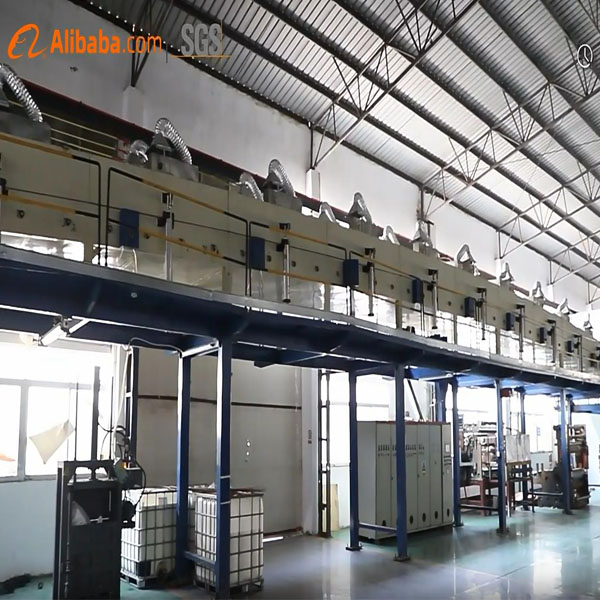

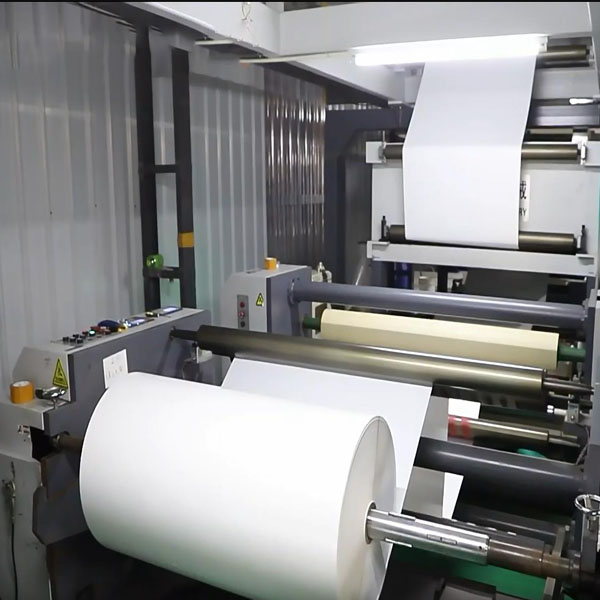

As a well-established direct factory, we bring over three decades of professional production expertise to the technical coatings and synthetic materials sector, guaranteeing stable supply chain capabilities.
Every batch of our 5-layer sandwich tape undergoes meticulous peeling, static shear, and dimensional shrinkage testing to perfectly match international standard parameters.
We support fully flexible customizations, including precision log roll slitting widths, targeted adhesive coat weights, and bespoke release liner solutions to meet your unique die-cutting needs.
Backed by 30+ years of industrial coating and laminating experience, we deliver tier-1 equivalent performance at a highly competitive factory-direct wholesale price. We support flexible custom slitting widths, customized roll lengths, and specific adhesive coats
