How to Specify Black-Core Synthetic Paper for Double-Sided Cards and Opaque Inserts

A double-sided card may look acceptable on a sample table but reveal reverse-side artwork when held against stronger light. An opaque insert may hide the contents behind it yet curl after printing. A clean-looking sheet may develop damaged edges during die-cutting.

For card manufacturers, commercial printers and packaging converters, these problems can lead to rejected finished products even when the material matches the ordered thickness.

Black-core synthetic paper can be considered when a project requires printable surfaces together with an internal light-blocking layer. However, the words “black core” do not define a complete specification.

This guide explains how to specify black-core synthetic paper for double-sided cards and opaque inserts, establish meaningful acceptance criteria and qualify samples before bulk purchasing.

Key Takeaways

• Confirm the internal construction rather than relying on the product name.

• Distinguish normal viewing opacity from performance under backlighting.

• Specify thickness, stiffness and finished dimensions separately.

• Qualify both printable surfaces on the intended press.

• Inspect cut edges, corners and layer integrity after converting.

• Approve a representative finished sample before placing bulk orders.

1. What Is Black-Core Synthetic Paper?

For purchasing purposes, black-core synthetic paper generally describes a synthetic sheet containing an internal black or dark light-blocking layer, often between lighter printable outer surfaces.

The exact construction can vary. Ask whether the material is coextruded, laminated or made using another process, and confirm the composition of its outer surfaces and core.

A useful specification begins with questions such as:

• What are the base polymers and surface layers?

• Is the internal core continuous across the usable sheet?

• Are both sides intended for printing?

• Do the two sides have the same surface treatment?

• Does the quoted thickness include all coatings and layers?

• What edge appearance should be expected after cutting?

A black printed surface is not the same construction as an internal black core. Likewise, a paper-based black-core card stock should not be assumed equivalent to synthetic material.

Ask for a construction description and a physical sample before comparing quotations.

2. Define the Problem: Show-Through, Light Transmission or Ink Transfer?

Customers sometimes use “bleed-through” to describe several different defects. Identifying the actual problem helps avoid selecting the wrong solution.

An internal light-blocking layer may address optical show-through. It does not automatically solve ink drying, set-off or adhesion problems.

Describe the failure using photographs, printed samples and the conditions under which it occurs.

3. Specify Opacity and Light Blocking Separately

For opaque synthetic paper for double-sided printing, “high opacity” is an incomplete requirement unless the assessment method is defined.

Normal Viewing Opacity

Normal viewing concerns how much the reverse-side print or background influences the visible face.

Test representative artwork, particularly dark reverse-side areas positioned behind pale backgrounds or unprinted white areas.

Where instrumental data is supplied, record the method and measurement conditions. For example, ISO 2471 describes a diffuse-reflectance method for paper opacity; it should not be treated as a direct measurement of light transmission. Confirm that the chosen method is appropriate for the proposed material. Diffuse reflectance method

Backlit Light Blocking

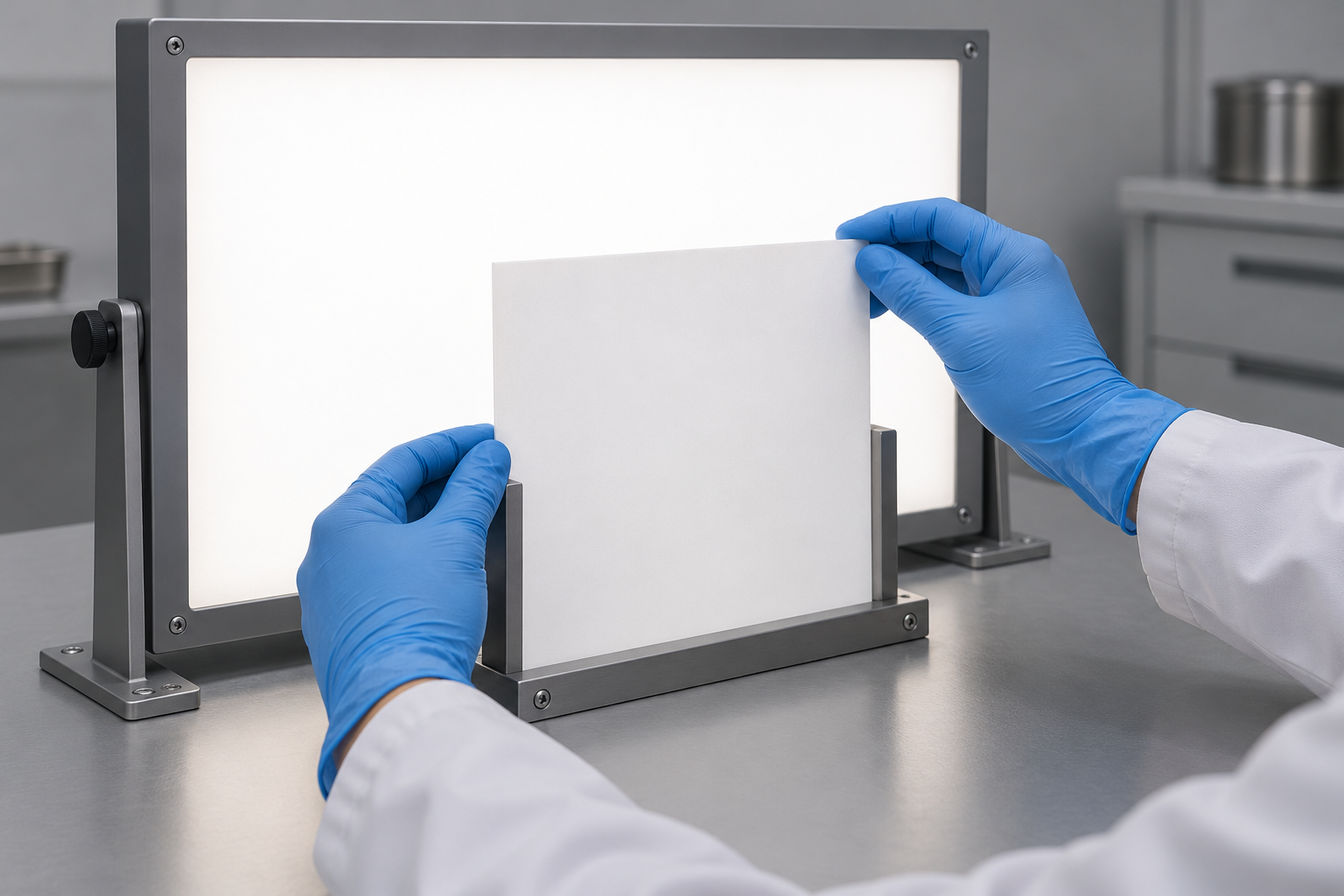

If the card or insert must conceal information when illuminated from behind, define a separate backlit assessment.

Agree on:

• Light source and brightness.

• Sample position and viewing distance.

• Artwork used for the test.

• Whether assessment is visual or instrumental.

• The acceptance threshold.

A phone flashlight can help screen samples, but differences in devices and positioning make it unsuitable as the sole purchasing specification.

Avoid an undefined requirement such as “100% opaque.” State what must remain concealed and under which test conditions.

4. Select Thickness and Stiffness for the Finished Product

Thickness, GSM and stiffness describe different properties.

A thicker sheet is not necessarily proportionally stiffer, and sheets of equal thickness may have different handling characteristics.

For Double-Sided Cards

Define how the card will be handled.

A frequently shuffled card, a display card and an identification insert have different requirements. Evaluate flexibility, recovery after bending, surface friction and corner durability using finished samples.

Do not specify a standard card thickness simply because another product uses it.

For Opaque Inserts

Identify whether the insert sits loose inside a package, slides into a holder or is bonded between other components.

Check clearance, flatness, insertion force and the ability to conceal the intended background. For a bonded insert, include adhesive and assembly conditions in the trial.

The right thickness is the one that meets the application and converting requirements together.

5. Confirm Double-Sided Printing Compatibility

“Printable on both sides” should refer to a defined printing process.

Provide the supplier with the press model, ink system, drying or curing conditions and required finishing process.

Do not assume that a grade suitable for UV inkjet is also suitable for aqueous inkjet, dry toner, HP Indigo or conventional offset printing.

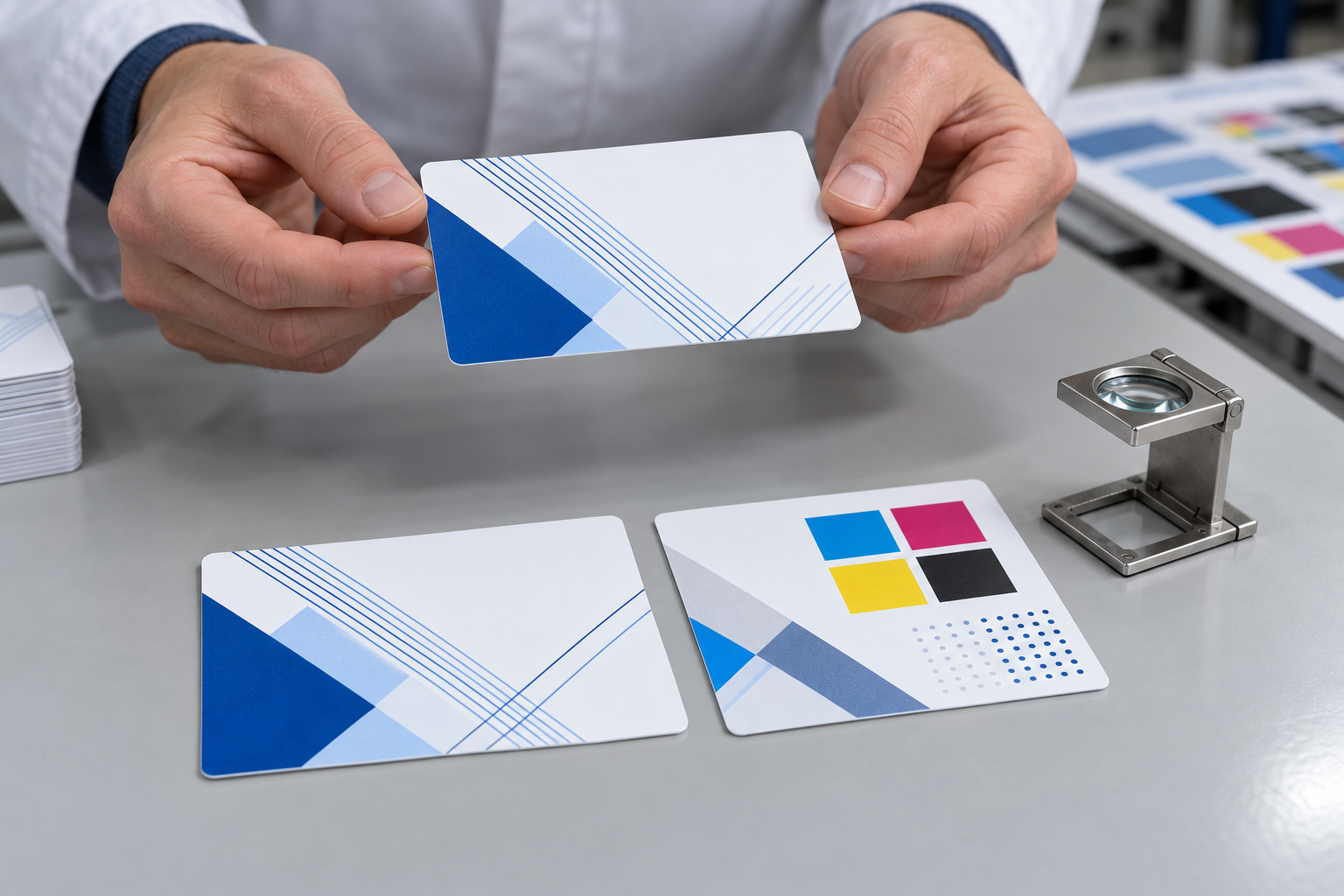

Evaluate Both Surfaces

Print the same test elements on each side:

• Fine text and lines.

• Solid colour areas.

• Pale backgrounds.

• High-contrast artwork.

• Functional codes, where required.

Compare ink adhesion, image quality and surface appearance.

If the two sides differ, agree on how the printable faces will be identified during production.

Run the Actual Duplex Sequence

Test the intended workflow, including the interval between printing the first and second sides.

Check for:

• Curl or dimensional change.

• Surface marking during the second pass.

• Set-off in stacked sheets.

• Changes in feeding or registration.

• Ink damage after finishing.

A one-sided sample cannot establish that the complete duplex process will perform acceptably.

6. Inspect Cutting, Corners and Layer Integrity

For black-core synthetic card stock, converting quality can be as important as flat-sheet appearance.

Run samples through the intended guillotine, die-cutting, punching or corner-rounding process.

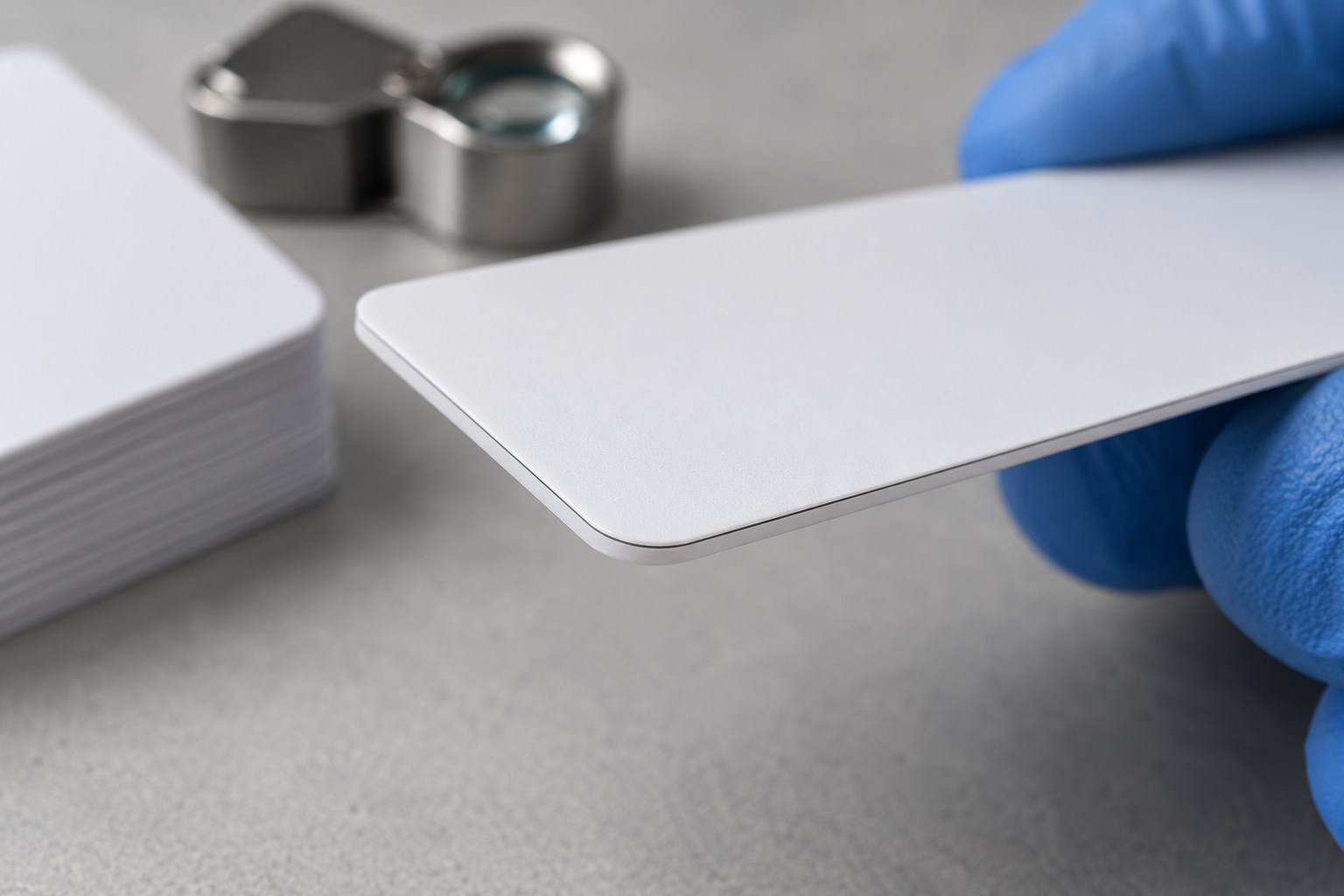

Examine Finished Edges

Inspect for:

• Burrs or roughness.

• Layer separation.

• Surface lifting.

• Crushed or distorted edges.

• Uneven exposure of the internal core.

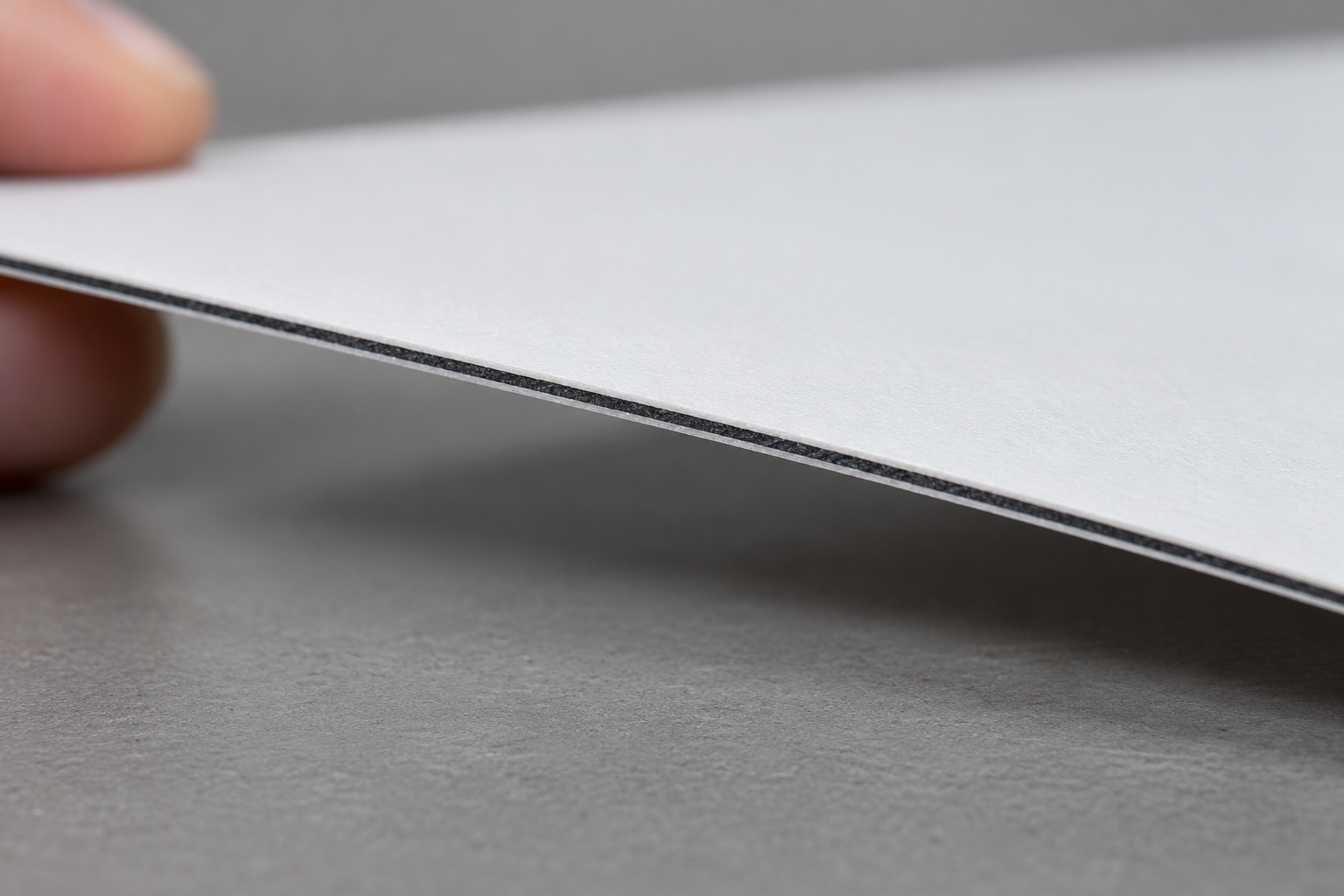

A visible dark line at a cut edge may be a normal consequence of the construction. Agree on acceptable appearance rather than assuming the edge will remain white.

Test Relevant Handling

For cards, assess repeated bending and handling appropriate to the application. For inserts, evaluate insertion, removal and assembly.

Where water or cleaning exposure matters, inspect the cut edges as well as the faces. Performance of the base polymer alone does not establish the durability of a multilayer finished product.

If separation occurs, investigate material bonding and converting conditions together.

7. Qualify Samples Using a Defined Trial Plan

A small swatch can establish colour and feel, but it cannot demonstrate production feeding or repeatable cutting performance.

Request samples large enough for the actual printing and converting equipment.

A practical qualification sequence is:

1. Confirm construction: Review grade identification, surfaces, core and thickness.

2. Check optical performance: Evaluate representative artwork under agreed lighting.

3. Print both sides: Use the intended press, inks and production sequence.

4. Convert the samples: Cut, round, punch or bond as required.

5. Test finished use: Assess handling, fit and relevant exposure.

6. Approve a reference: Retain samples and record the agreed acceptance criteria.

Record the material batch, equipment settings, assessment timing and results.

Before repeat orders, agree on which characteristics must remain consistent and how changes in material construction or surface treatment will be communicated.

8. Black-Core Synthetic Paper Purchasing Specification Checklist

Use the following checklist when requesting samples or quotations.

If replacing an existing material, provide both an approved reference and a sample showing the current problem.

This makes it easier to compare alternatives against the same requirements.

9. Compare Cost per Accepted Finished Piece

A lower sheet price can be offset by printing rejects, poor cutting yield or assembly problems.

Compare:

• Usable sheet or roll dimensions.

• Layout yield.

• Setup waste.

• Duplex printing performance.

• Cutting and finishing rejects.

• Additional coating or lamination requirements.

• Consistency between deliveries.

The useful target is cost per accepted card or insert, rather than price per kilogram alone.
