HDPE Spunbond Wristband Roll Material: What Converters Must Specify Before Slitting and Printing

A wristband material can look suitable as a hand sample yet cause problems on the converting line.

The web may wander after slitting. Printed registration may shift during drying. Perforations may separate too easily, or an adhesive closure may lift even though the base material remains intact.

For wristband manufacturers, these failures affect production yield, delivery schedules and finished-product reliability.

Buying HDPE spunbond wristband roll material therefore requires more than specifying GSM and roll width. Converters need to define the material, roll construction, printing process and finished wristband requirements together.

This guide explains what to include in a purchase specification—and what to test before committing to bulk rolls.

Key Takeaways

• Confirm the exact HDPE nonwoven grade and manufacturing construction.

• Specify usable web width, tolerances and layout requirements.

• Define core dimensions, roll diameter, winding direction and splice rules.

• Qualify printing on the actual press and ink system.

• Test perforations and closures as part of the finished wristband.

• Approve a production-representative trial roll and retain its records.

1. Identify the Exact Wristband Material Construction

“HDPE spunbond” is a useful starting description, but it is not a complete purchasing specification.

Ask the supplier to identify the manufacturing process, material grade and surface treatment. Do not assume that conventional spunbond HDPE, flash-spun HDPE and other printable nonwoven constructions are interchangeable.

Record:

• Grade name or product code.

• Base polymer and manufacturing construction.

• Nominal basis weight and tolerance.

• Thickness and measurement method.

• Surface finish and printable side.

• Available tensile, tear and elongation data.

• Surface treatment and storage guidance.

If replacing an existing material, provide a reference sample and describe how it behaves during printing, slitting and wearing.

A matching GSM does not establish equivalent performance.

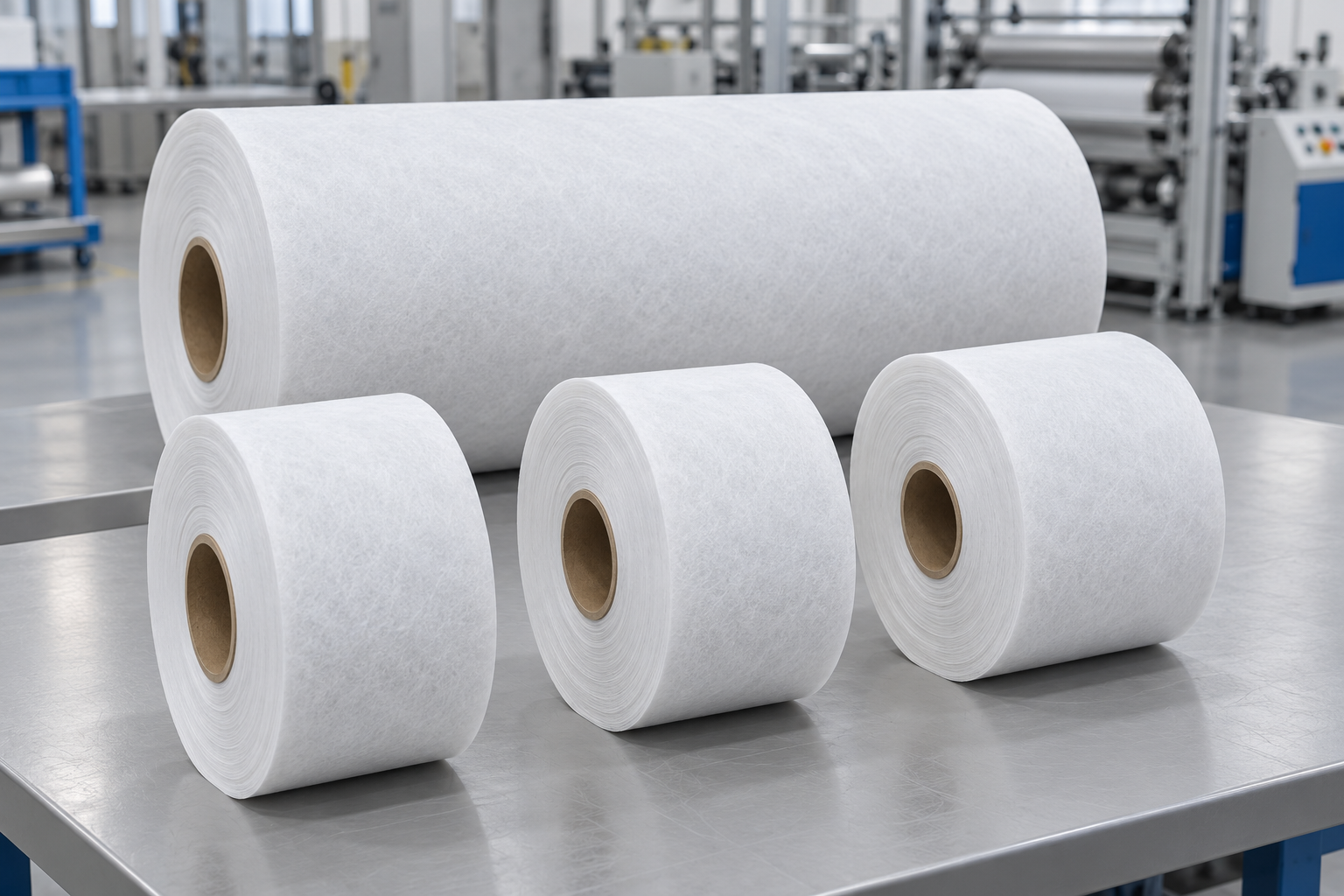

2. Specify Master-Roll Width and Usable Slitting Width

For HDPE wristband material for slitting, distinguish between the supplied roll width and the usable production width.

The usable width must accommodate the wristband layout, edge trimming and any process-specific spacing.

Before confirming roll width, define:

• Finished wristband dimensions.

• Number of lanes across the web.

• Layout orientation.

• Edge-trim allowance.

• Gaps or gutters, where required.

• Print-control or registration areas.

• Permitted slit-width variation.

Calculate Width from the Actual Layout

A simple starting calculation is:

Required width = lane widths + inter-lane allowances + edge trims

For example, if the layout places ten 25 mm lanes across the web, with no inter-lane gaps and 5 mm trimming at each edge:

10 × 25 mm + 2 × 5 mm = 260 mm

This is an illustrative layout calculation. Actual width depends on how the wristband is oriented and processed.

Do not assume that a 250 mm roll can produce ten usable 25 mm lanes without allowance for trimming or converting requirements.

Agree on width tolerances with reference to your equipment and finished-product specification.

3. Define Roll Build Before Discussing Roll Length

A longer roll can reduce roll changes, but it may exceed the unwind stand’s diameter or weight capacity.

Specify the complete roll format:

Use a Winding Diagram

Terms such as “face out” can become ambiguous when both sides look similar.

Use a diagram identifying the printable surface, unwind direction and operator view. This reduces mistakes when transferring a specification between purchasing, production and the supplier.

Set Splice Rules

A splice can interrupt printing, die-cutting or adhesive application.

Agree whether splices are permitted, how they are marked and whether affected material must be removed from finished output. Where practical, request splice-position information for production planning.

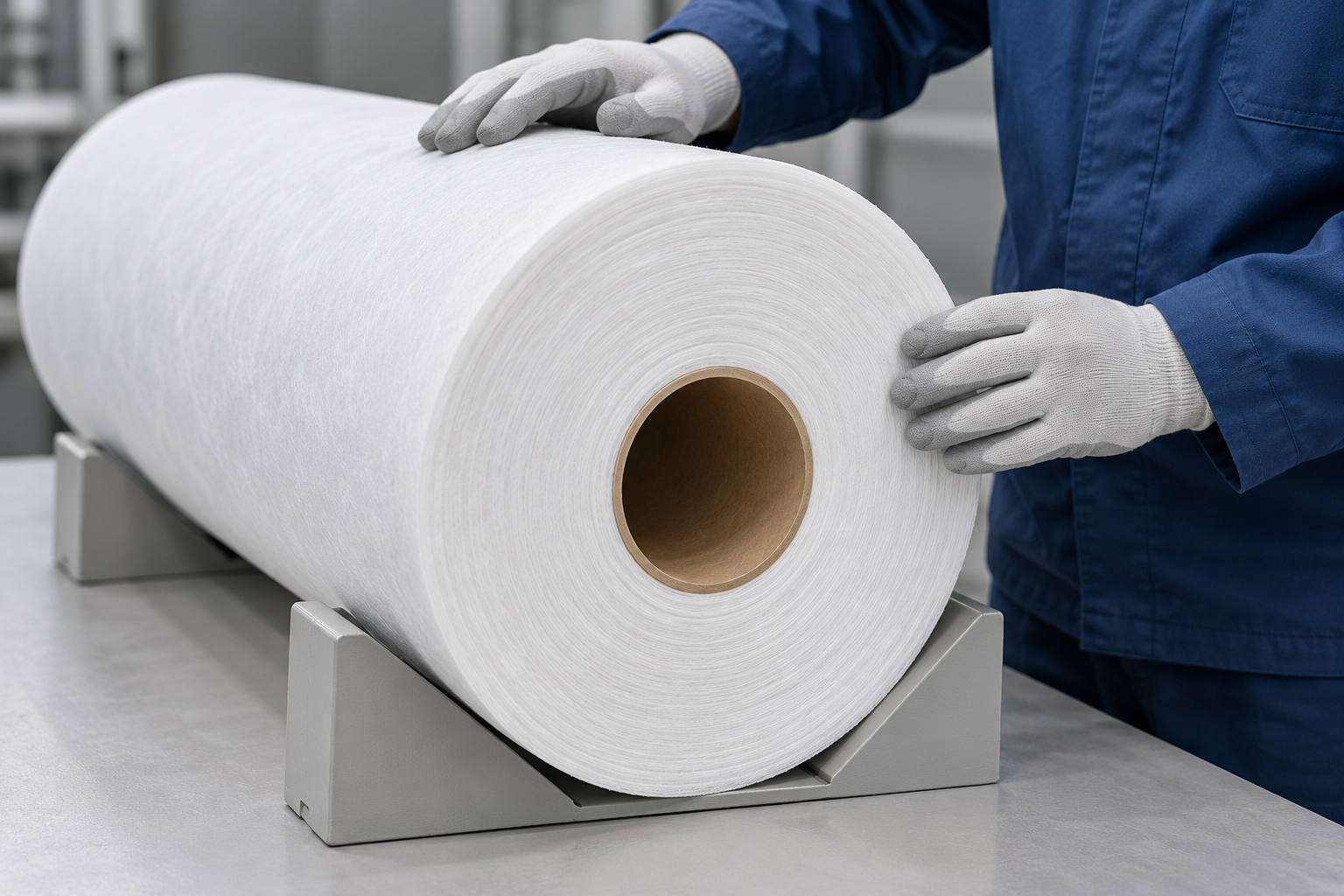

4. Qualify Slit-Edge Quality and Web Tracking

A visually neat roll can still cause production problems if its edges are damaged or its winding is uneven.

Inspect incoming and slit rolls for:

• Incomplete fibre cutting.

• Loose edge fibres or debris.

• Nicks and damaged edges.

• Wrinkles or folded material.

• Telescoping or uneven roll faces.

• Lateral web movement during unwinding.

Blade condition, cutting method and winding settings should be developed for the actual grade. Settings used for paper or film should not automatically be transferred to an HDPE nonwoven.

During the trial, observe the web from a full roll through its later stages. Tracking and tension behaviour may change as roll diameter decreases.

Material-manufacturer guidance also emphasizes pilot trials and controlled web handling for specific HDPE nonwoven products. Any numerical settings must come from guidance applicable to the grade being purchased. Tyvek® Industrial Packaging

5. Specify HDPE Wristband Roll Material for Flexographic Printing

For flexo-printable HDPE wristband material, provide more than the word “flexo.”

Identify:

• Press model.

• Ink system: water-based, solvent-based or UV.

• Number of colours and artwork coverage.

• Plate and anilox arrangement.

• Drying or curing system.

• Intended production speed.

• Web-tension controls.

• Additional numbering or coding process.

These details help distinguish a material-selection problem from a press-setup problem.

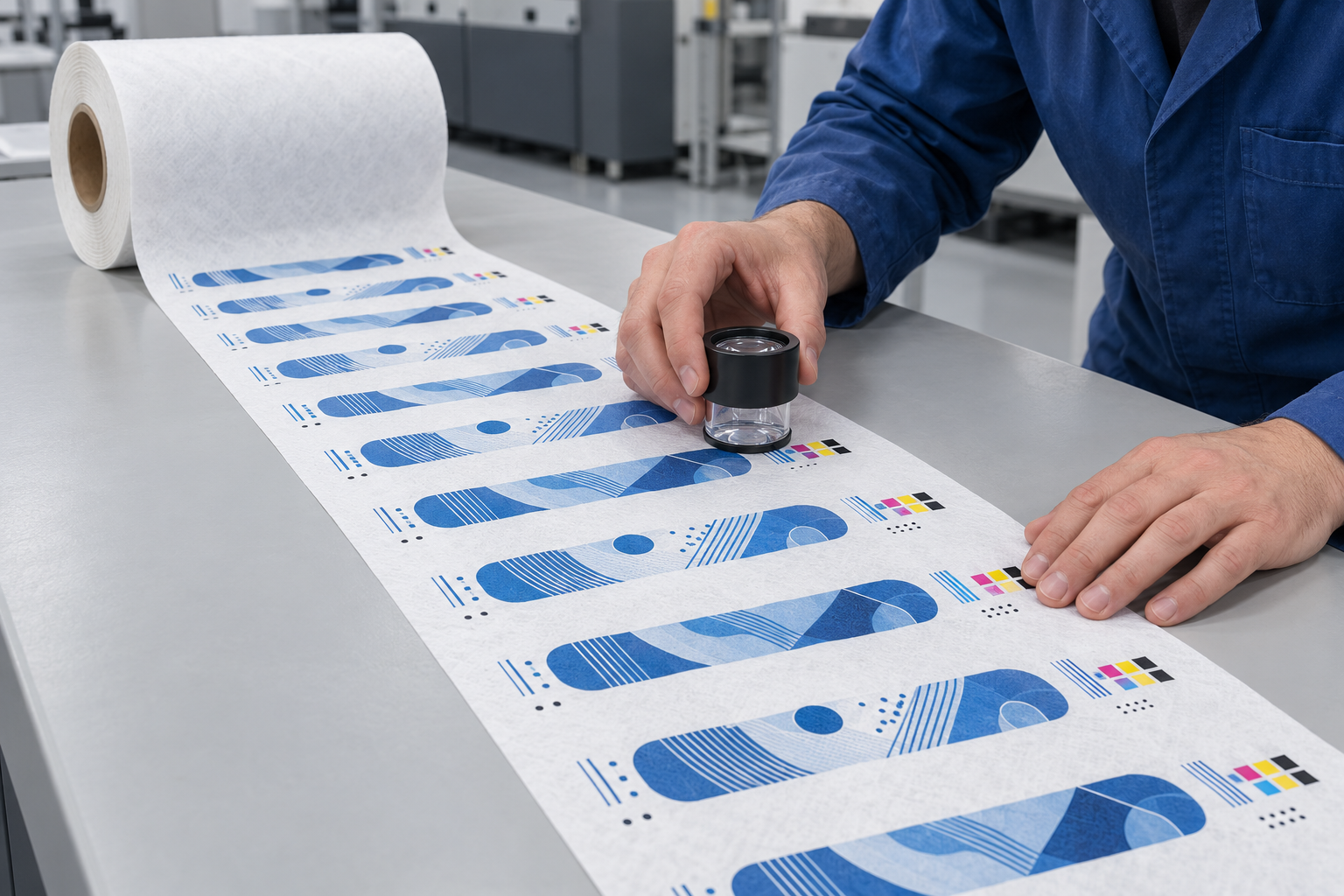

Check Ink Adhesion and Surface Appearance

Print representative artwork containing solid colours, fine details and variable information.

Assess ink retention, rubbing, drying or curing, and any change in surface feel. If functional codes are included, verify readability after relevant handling tests.

Do not infer ink compatibility from the base polymer alone. Surface treatment and the selected ink system matter.

Monitor Heat and Tension Together

Record the drying or curing conditions and inspect for distortion, registration changes and wrinkles.

A dryer setting is not the same as the temperature reached by the moving web. Develop the operating window using grade-specific guidance and actual press trials.

Avoid publishing or purchasing against a universal drying temperature for all HDPE materials.

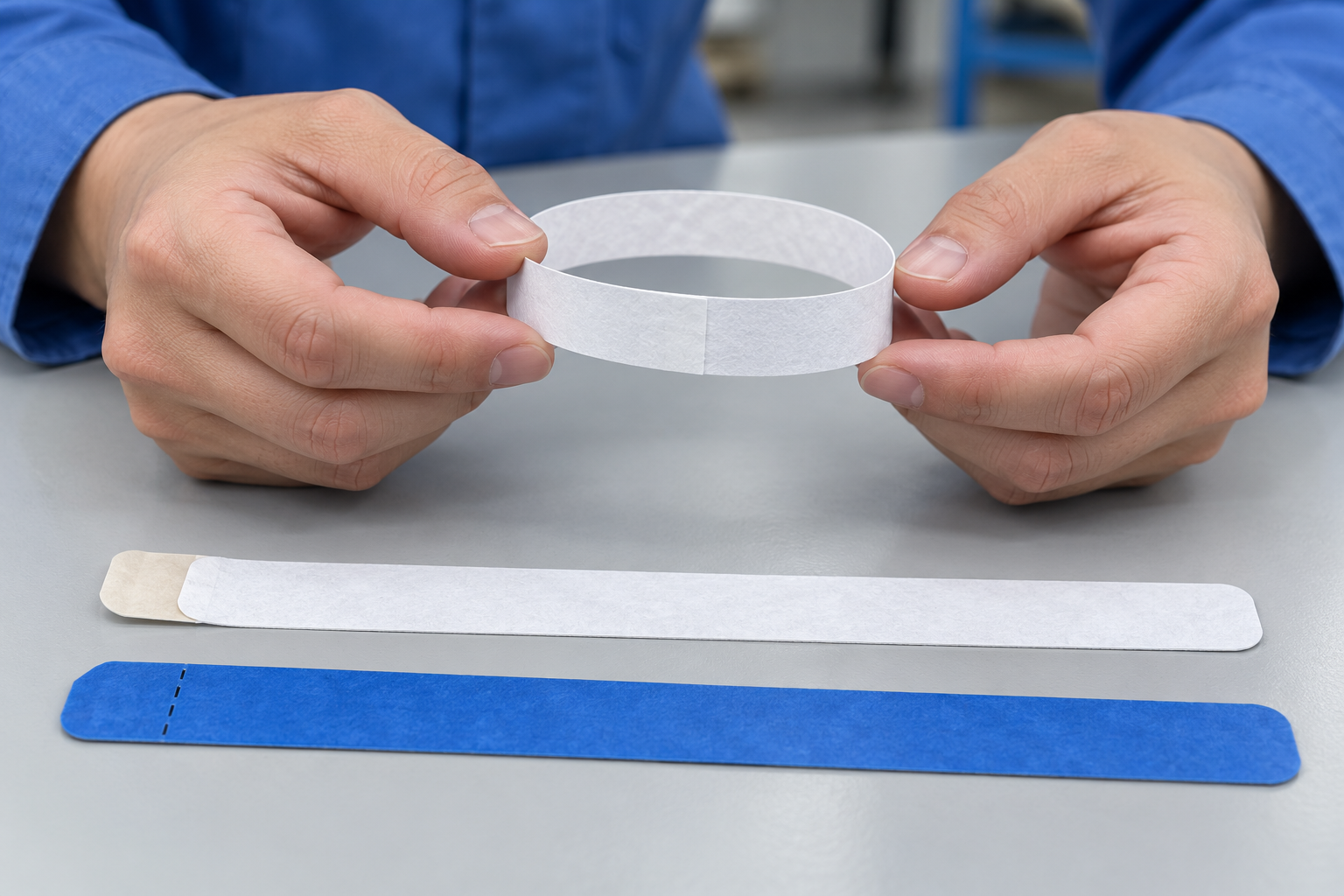

6. Test Die-Cutting, Perforations and Closure Performance

The base material is only one component of a finished wristband.

A strong sheet does not guarantee a secure closure, suitable perforation or comfortable cut edge.

Die-Cutting and Perforations

Check whether the converted wristband:

• Separates cleanly at the intended location.

• Remains intact through printing and packing.

• Has smooth, consistent edges.

• Resists unintended tearing around perforations.

• Maintains the required dimensions.

Perforation geometry and tooling can affect performance as much as basis weight.

Adhesive Closures

For adhesive wristbands, evaluate the actual adhesive, overlap area, release liner and assembly process.

Check for lifting, slipping, adhesive transfer and reopening under the intended wear conditions.

If tamper evidence is required, define the expected failure behaviour. Tear resistance of the substrate alone does not establish tamper evidence.

Wear and Exposure

Define the intended wear period and relevant moisture, rubbing or cleaning exposure.

Assess the complete printed wristband after exposure—not only an unprinted strip. Where skin-contact documentation is required, request evidence relevant to the supplied construction and intended market.

Small sheets can demonstrate surface appearance. They cannot establish continuous-web performance.

7. Plan the Trial Roll Around the Production Questions

For a wristband converter trial roll, specify the width, core, printable side and winding direction required by your line.

Choose a trial length sufficient to evaluate the operations in scope:

1. Unwinding and web tracking.

2. Slitting, where performed before printing.

3. Printing and drying or curing.

4. Numbering or code printing.

5. Die-cutting and perforating.

6. Adhesive application and closure assembly.

7. Rewinding, separation and packing.

8. Finished-wristband testing.

Keep a trial log recording the material batch, settings, speed, stops, waste and observed defects.

A sample approval should identify the exact grade and process conditions. It should not become a blanket approval for future changes in construction or surface treatment.

8. Wristband Roll Material RFQ Checklist

Use this checklist when requesting a quotation or comparing suppliers.

Keep requirements measurable wherever practical. Terms such as “good quality,” “strong” and “easy to print” are difficult to use for incoming inspection or resolving a claim.

9. Compare Cost per Accepted Wristband

Price per kilogram does not show the complete production cost.

For uncoated base material, theoretical area per kilogram is:

Area in m²/kg = 1,000 ÷ GSM

However, actual wristband yield also depends on layout, edge trims, splices, setup waste and rejected output.

Compare:

• Material cost per usable square metre.

• Wristbands produced per roll.

• Setup and changeover waste.

• Printing and converting rejects.

• Closure-related rejects.

• Achievable production speed.

• Packing and freight.

A lower-priced roll may be more expensive if it produces additional stops or waste.

The relevant purchasing measure is cost per accepted finished wristband.
