The Ultimate B2B Guide to Inkjet-Printable Tyvek: Solving the On-Demand Customization Dilemma for Event Signs and Industrial Tags

For decades, DuPont™ Tyvek® has been the undisputed material of choice where tear resistance, breathability, and lightweight durability are non-negotiable. From construction wraps to medical packaging, and from marathon race bibs to high-security festival wristbands, its unique flash-spun high-density polyethylene (HDPE) structure offers performance that traditional paper and standard plastics simply cannot match.

However, for commercial printing houses, event organizers, and industrial label converters, Tyvek has historically presented a significant operational bottleneck: surface ink adhesion.

Traditional Tyvek is inherently hydrophobic. Its chemical structure repels water-based inks, making standard desktop inkjet printing virtually impossible without specialized, cost-prohibitive industrial equipment. This guide provides an in-depth, technical exploration of why traditional Tyvek presents these printing challenges, how engineering innovations in inkjet-compatible coatings have resolved them, and how B2B buyers can leverage this technology to capture high-margin, small-batch customization markets.

The Core Technical Bottleneck of Traditional Tyvek

To understand why traditional Tyvek fails in standard printing environments, one must examine its microscopic architecture. Unlike wood-pulp paper, which relies on a porous, fibrous network that naturally absorbs liquid via capillary action, Tyvek is composed of continuous, randomly oriented pure HDPE filaments that are bonded together by heat and pressure.

This results in a smooth, non-porous surface that provides magnificent tensile strength and liquid barrier properties. However, it also introduces three distinct manufacturing and processing challenges:

1. The Ink Rejection Phenomenon

When standard aqueous (water-based) pigment or dye inks are applied to untreated Tyvek via a desktop inkjet printhead, the surface tension of the material prevents the liquid droplets from penetrating. Instead of drying, the ink beads up, coalesces, and remains in a liquid or semi-liquid state on the surface. This leads to immediate smudging, bleeding across color boundaries, and unreadable text or barcodes.

2. The Thermal Vulnerability of HDPE

Some printing factories attempt to bypass ink issues by utilizing high-heat laser printers or digital presses. This introduces an even greater risk: material warping.

Pure HDPE has a relatively low melting point (approximately 135°C / 275°F). The fuser units in heavy-duty laser printers regularly exceed these temperatures. When passed through these systems, the Tyvek substrate can shrink, ripple, or completely melt inside the machine, leading to catastrophic equipment damage and wasted inventory.

3. The Industrial Scaling Lock-In

To successfully print high-quality graphics on traditional Tyvek, facilities have historically been forced to rely on Flexographic printing, Screen printing, or high-end Industrial UV-Curable / Eco-Solvent digital presses.

While highly efficient for running half a million identical units, these methods require extensive setup times, specialized plates, and significant ink-purging processes. Consequently, the minimum order quantities (MOQs) required to amortize these setup costs render small-to-medium customized orders financially unviable.

Enter Inkjet-Printable Tyvek – The Engineering Breakthrough

To bridge the gap between Tyvek’s legendary durability and the market’s growing demand for variable data, on-demand printing, and low-MOQ flexibility, material science engineers developed Inkjet-Printable Tyvek.

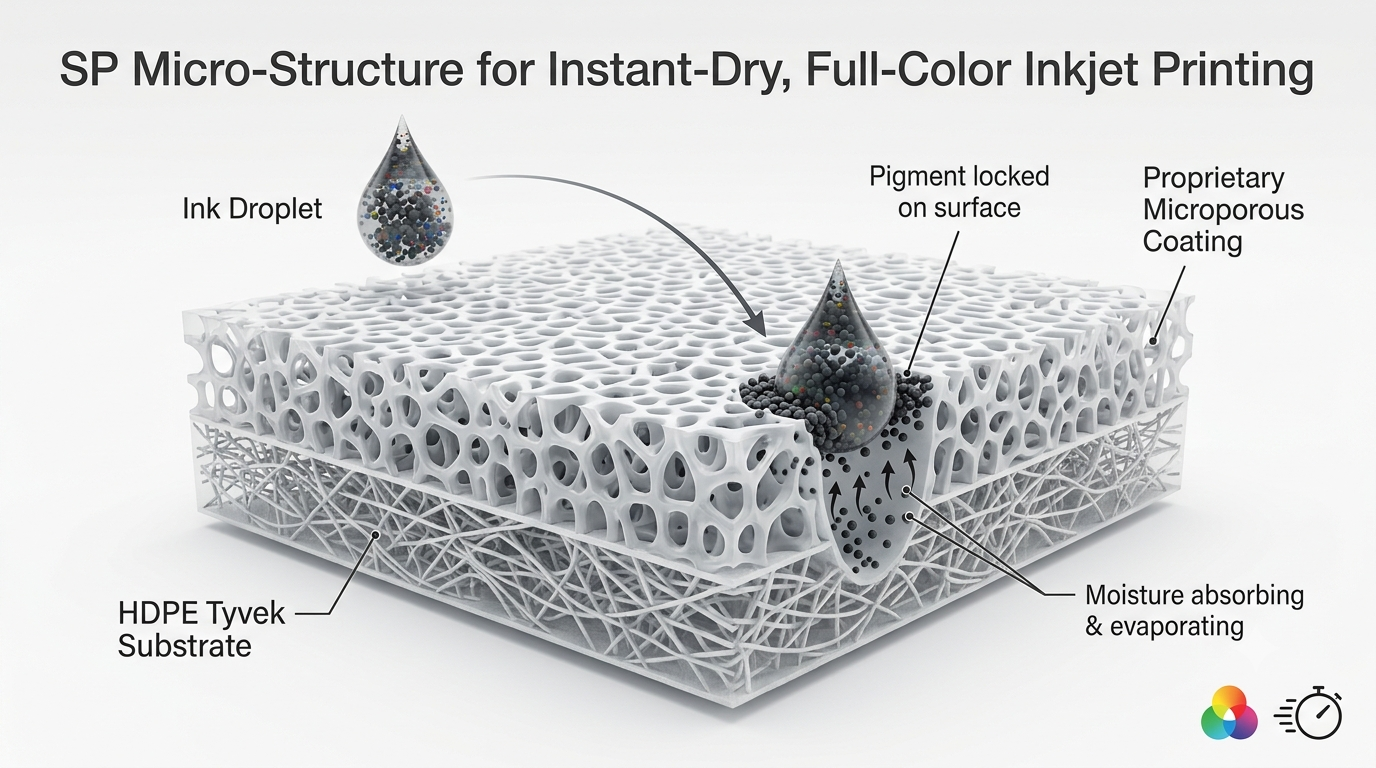

How the Micro-Porous Coating Works:

This material is not merely standard Tyvek cut into sheets; it represents a multi-layered material engineering solution. The core advancement lies in a proprietary, sub-micron microporous surface coating applied uniformly to the Tyvek base.

1. Instant Chemical Fixation: The coating acts as a highly receptive, microscopic sponge. The moment an aqueous ink droplet hits the surface, the coating instantly separates the water carrier from the solid pigment particles.

2. Capillary Capturing: The liquid vehicle is absorbed and dissipated through the micropores without altering the underlying HDPE structure, while the pigment or dye molecules are locked securely into the top layer.

3. True Instant-Dry Performance: Because the ink is structurally fixed within milliseconds, sheets or rolls exiting a standard desktop commercial inkjet printer can be handled, stacked, or packed immediately without any risk of offset printing or marking.

Importantly, this advanced coating is engineered to match the flexibility and elongation properties of the underlying material. It will not crack, flake, or delaminate when the Tyvek is crumpled, folded, or subjected to intense physical tension.

Addressing the Key Pain Points of Modern B2B Buyers

In the global supply chain, purchasing decisions are driven by cost reduction, operational efficiency, and risk mitigation. For commercial buyers who supply event organizers, logistics hubs, or outdoor equipment manufacturers, upgrading to an inkjet-compatible synthetic substrate directly resolves three systemic pain points.

Pain Point 1: The Nightmare of Variable Data & Small-Batch Personalization

In the modern event management sector—particularly for marathons, triathlons, and cycling races—mass production is no longer the default requirement. Instead, the market demands hyper-customization. Every single race bib must carry unique variable data: a specific runner’s name, their dedicated start corral, medical emergency information, a unique QR code for timing chips, and sometimes regional sponsor logos based on the athlete's demographic.

• The Old Way: Ordering thousands of pre-printed shells from a massive flexo printing house, then attempting to overprint names using sub-optimal methods, or paying exorbitant premiums for industrial digital printing.

• The Inkjet Tyvek Way: Event supply companies can maintain a lean inventory of blank, pre-die-cut inkjet Tyvek sheets. Using standard, commercially available desktop inkjet printers (such as Epson, Canon, or HP pigment-ink systems), they can print full-color, variable-data race bibs on-demand. Production can happen the week of the event, eliminating waste from runner cancellations and allowing last-minute sponsor changes.

Pain Point 2: Compromised Weatherproof Performance After Processing

A common complaint among purchasing managers who source alternative synthetic papers (such as PP or PET-based synthetic sheets) is that while the unprinted material is waterproof, the printed image is not. If a runner sweats heavily, or if an industrial tracking tag is exposed to a downpour on an open shipping dock, the ink runs, turning a critical barcode into an unscannable mess.

• The Solution: When paired with standard OEM pigment-based inks, our inkjet-coated Tyvek forms a permanent, water-insoluble bond. The resulting print is 100% waterproof, chemical-resistant, and UV-stable.

• Physical testing demonstrates that even after being completely submerged in water for extended periods or subjected to aggressive surface abrasion, the print clarity remains perfectly sharp, and the barcode read-rate remains at 100%.

While our Inkjet Tyvek is the absolute pinnacle for flexible, wearable applications like race bibs, some B2B buyers might require a more rigid substrate for structural displays. If your project involves indoor or outdoor commercial signage—such as trade show displays or X-banners—that must remain perfectly flat without any edge curling, we highly recommend exploring our premium Inkjet PP Synthetic Paper. It offers the same flawless waterproof performance but with the specific structural rigidity needed for professional advertising roll-ups.

Pain Point 3: Balancing Tensile Strength with User Comfort

For wearable applications like festival wristbands and marathon bibs, rigidity is the enemy. Heavy PVC or dense PET synthetic films can have sharp edges that scratch the skin, and they lack breathability, causing discomfort during physical exertion. Conversely, standard paper alternatives tear within hours under typical race or event conditions.

• The Solution: Tyvek maintains an extraordinarily high strength-to-weight ratio. It is practically impossible to tear by hand, ensuring that a race bib remains securely pinned through mud, wind, and physical contact. Yet, because it consists of breathable micro-fibers, it moves naturally with the wearer's clothing, offering an unparalleled user experience that generic plastic films cannot replicate.

Comparative Analysis for B2B Procurement Strategy

When sourcing materials for long-term contracts, procurement officers must evaluate how inkjet-compatible Tyvek compares to other common synthetic options available in the marketplace.

By analyzing this data, B2B procurement officers can easily discern that while DuPont™ Tyvek® occupies a distinct, high-performance niche wherever lightweight flexibility and human comfort are simultaneously required, it is part of a broader tactical material matrix.

For industrial tracking applications that face extreme chemical exposure or high-temperature environments beyond the limits of HDPE, you may want to review our robust PET Synthetic Film solutions. Alternatively, for high-volume commercial printing that demands cost-effective, tear-resistant marketing collateral, our comprehensive PP Synthetic Paper lineup provides the perfect industrial balance. Selecting the right material depends entirely on your client's final application environment.

Optimizing Production Workflows for Printing Factories

To maximize the ROI of implementing inkjet-printable Tyvek within your production lines, our technical engineering team recommends adhering to the following manufacturing guidelines:

1. Ink Selection Matters: For absolute waterproof capability and long-term UV resistance (essential for outdoor tags and sports bibs), pigment-based ink systems should always be utilized. While dye-based inks yield exceptionally vibrant color gamuts for indoor applications, they are inherently more water-soluble and prone to fading under direct sunlight.

2. Printer Calibration: Ensure your print drivers are set to an appropriate media type—typically "High-Quality Matte Paper" or "Heavyweight Fine Art Paper." This calibrates the printhead to deliver the optimal ink volume (ink limit) for the microporous coating, preventing over-saturation and preserving ultra-fine text details.

3. Storage and Conditioning: Like all technical substrates, rolls and sheets should be stored in their original moisture-resistant packaging until use. Maintain warehouse conditions at a stable relative humidity (40-60%) and temperature (20-25°C) to ensure flat, flawless feeding through high-speed digital feeding mechanisms.

Securing Your Supply Chain with a 30-Year Industrial Partner

In the B2B landscape, a material is only as good as the reliability of the factory standing behind it. Fluctuations in coating quality, inconsistent roll tensions, or delayed shipping timelines can paralyze a commercial printing facility and cause missed deadlines for major corporate clients or international sporting events.

With more than 30 years of deep-rooted expertise in specialty synthetic material manufacturing, we provide our global partners with more than just raw material—we deliver supply chain certainty.

Our Industrial Commitments to Volume Distributors and Converters:

• Precision Coating Consistency: Every square meter of our inkjet-compatible Tyvek undergoes rigorous automated surface-energy testing to guarantee zero deviation in ink absorption, ensuring your clients never experience localized printing defects.

• Tailored Converting Options: We supply material in both precision-slit master rolls for industrial conversion and custom sheets (A4, A3, 12"x18") optimized for commercial digital print shops.

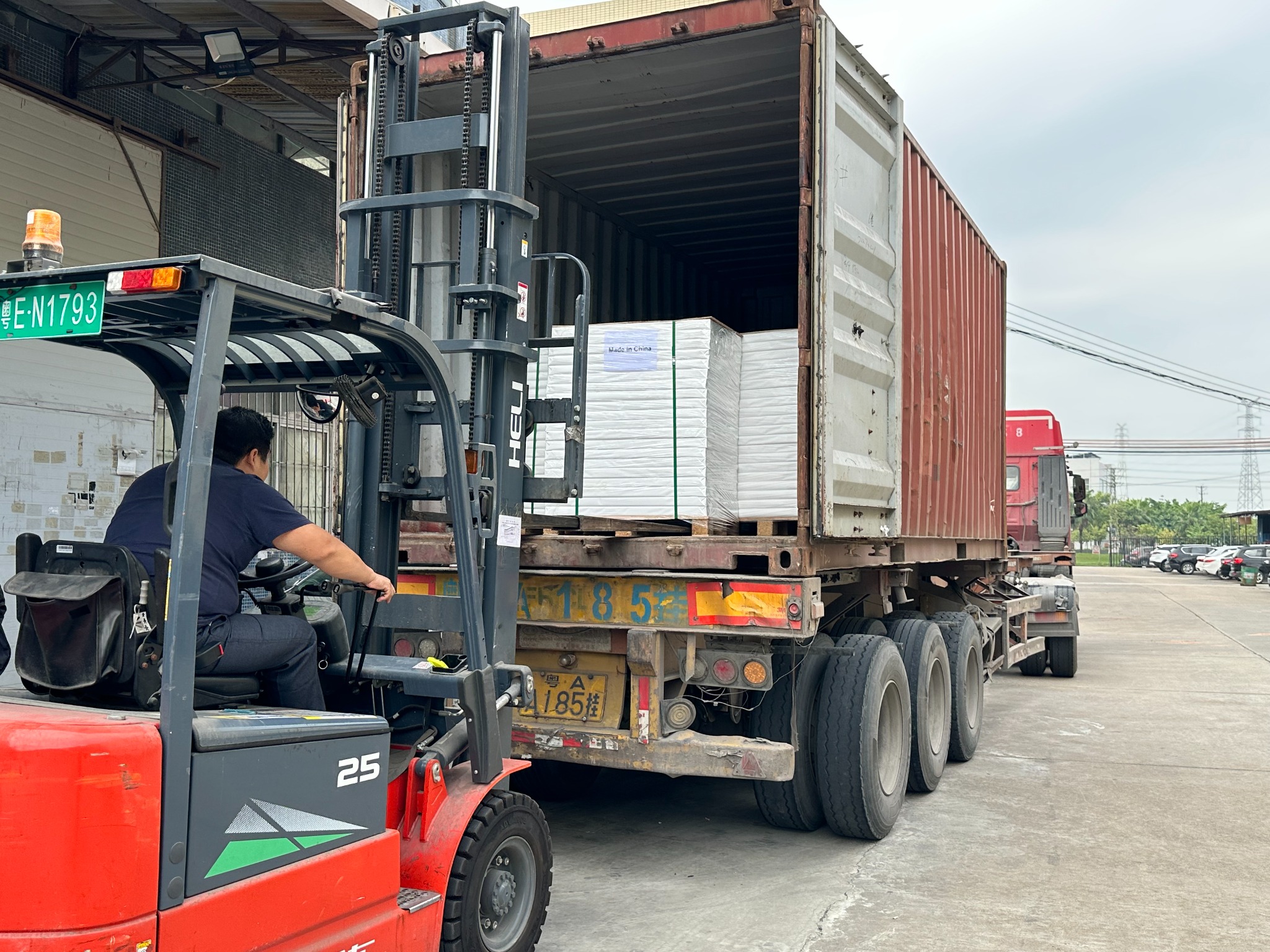

• Logistical Optimization: We specialize in heavy-volume export configurations. Our packaging systems are engineered to maximize the weight and volume utilization of 20-foot and 40-foot ocean containers, minimizing per-unit freight costs to protect your wholesale margins.

Elevate Your Product Portfolio

Don't let traditional printing constraints limit your business growth in the expanding on-demand customization market. Provide your clients with a premium substrate that combines the legendary, untearable performance of DuPont™ Tyvek with the effortless flexibility of standard desktop inkjet printing.

Contact our technical sales team today to request a comprehensive datasheet, discuss custom width configurations, or arrange for a sample pack to be sent to your testing facility.
