Tyvek® Printing Methods: Flexographic, UV, Screen and Digital Printing Compared

Choosing a printing method for Tyvek® material is not only about print quality. For converters, commercial printers, label producers and other industrial buyers, the decision also affects production speed, ink adhesion, drying or curing, variable-data capability and total processing cost.

Flexographic printing may be efficient for continuous roll production, while digital printing is often more practical for short runs and variable information. Screen printing offers strong ink coverage, and UV printing can provide fast curing and high-quality graphics.

The important point is that the material, printing system and final application must work together.

This guide compares four common printing methods and explains what buyers should confirm before ordering material for a printing project.

Quick Comparison: Which Printing Method Fits Your Project?

Before looking at each process in detail, start with the production requirement.

There is no universal “best” process. A high-volume converter and a short-run event printer may need completely different material configurations even when both are printing on Tyvek® material.

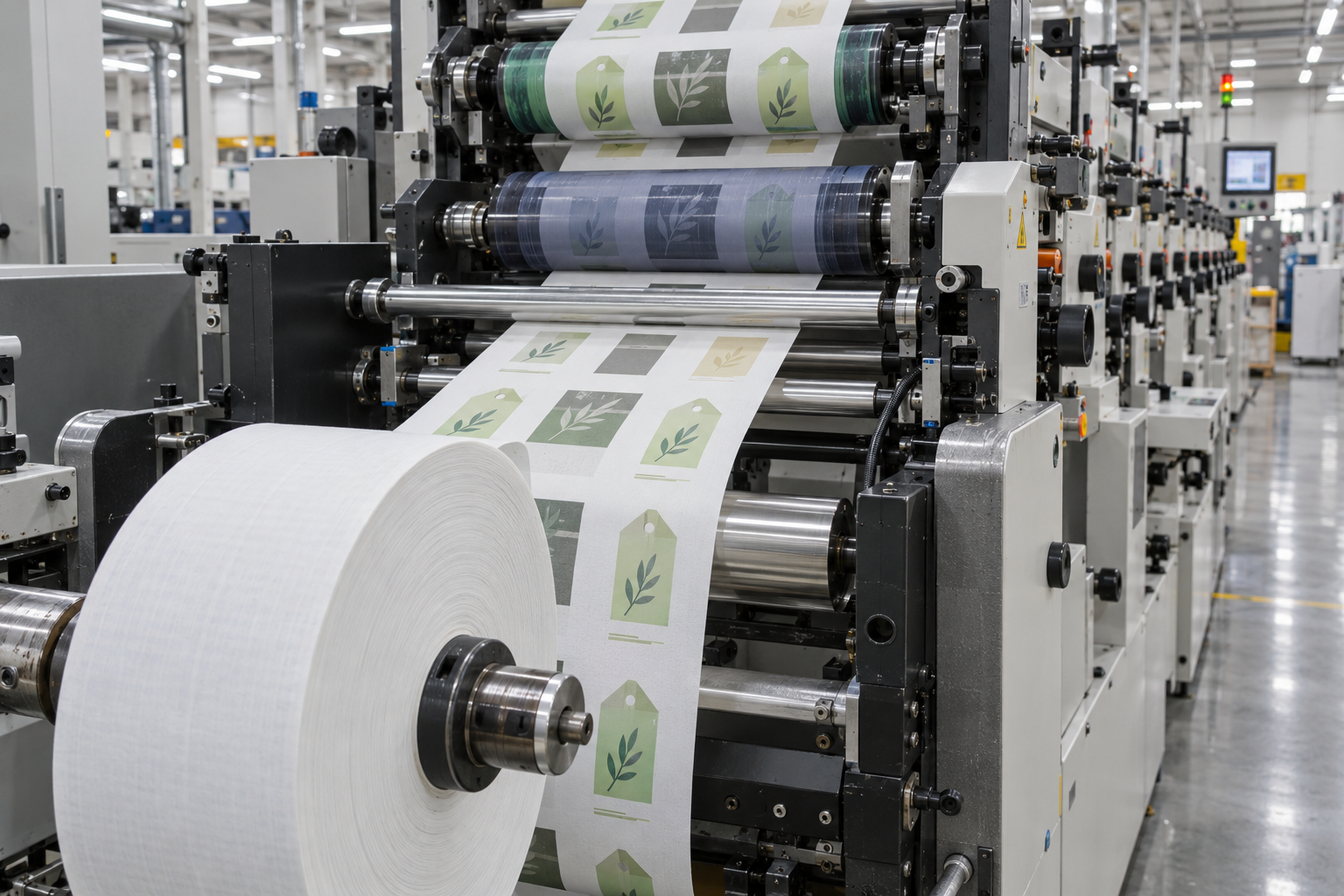

1. Flexographic Printing: Designed for Production Efficiency

Flexographic printing is particularly relevant to converters processing material from rolls.

Its main advantage is continuous, high-volume production. This makes it a practical option for repeat orders such as labels, tags, wristbands and other converted products.

For buyers, however, production volume is only one part of the decision.

Tyvek® has relatively low absorbency compared with conventional paper. Ink formulation and drying conditions therefore require attention. Excessive web temperature or tension can also affect material stability.

Before ordering rolls for a flexographic line, confirm:

• Roll width and diameter

• Core size

• Ink system

• Number of colors

• Press speed

• Drying configuration

• Finished application

When should you consider flexographic printing?

Choose flexographic printing when the project involves large quantities, roll-fed converting and repeat production.

For a new material specification, a press trial is recommended before moving to full-volume production.

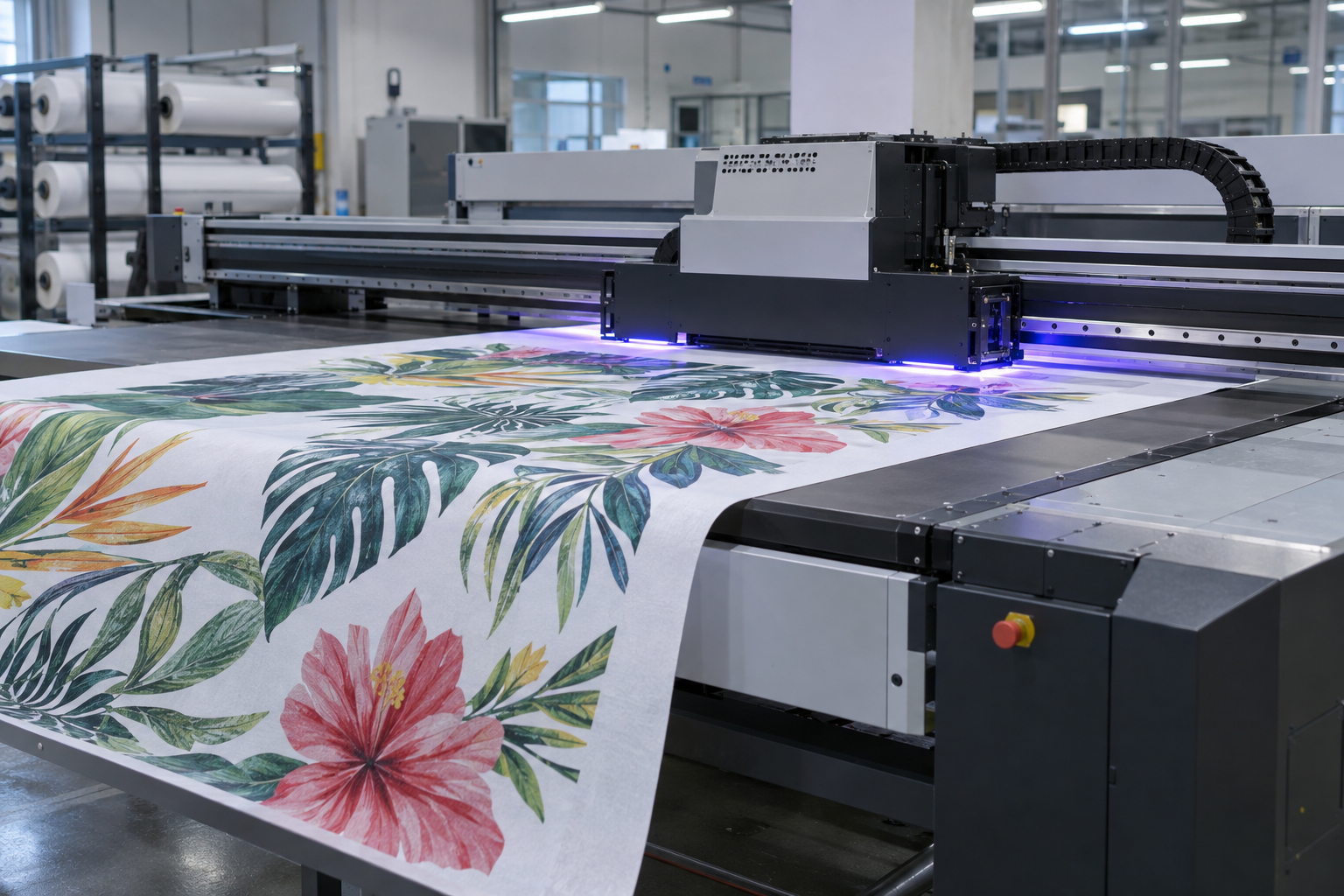

2. UV Printing: When Graphics and Fast Curing Matter

UV printing is useful when a project requires detailed graphics and rapid curing.

Unlike conventional inks that depend heavily on absorption or evaporation, UV inks cure through UV energy. This makes the process attractive for materials with low absorbency.

But “UV printable” should not be treated as a guarantee of production compatibility.

The actual result depends on factors such as:

• UV or LED-UV equipment

• Ink formulation

• Surface condition

• Curing energy

• Required adhesion

• Folding or converting after printing

A visually good print is not necessarily a successful finished product. If the printed material will later be folded, cut, punched or exposed to abrasion, those processes should also be included in testing.

When should you consider UV printing?

UV printing is worth evaluating for short- to medium-run graphics, signs, tags and customized applications where image quality and fast curing are important.

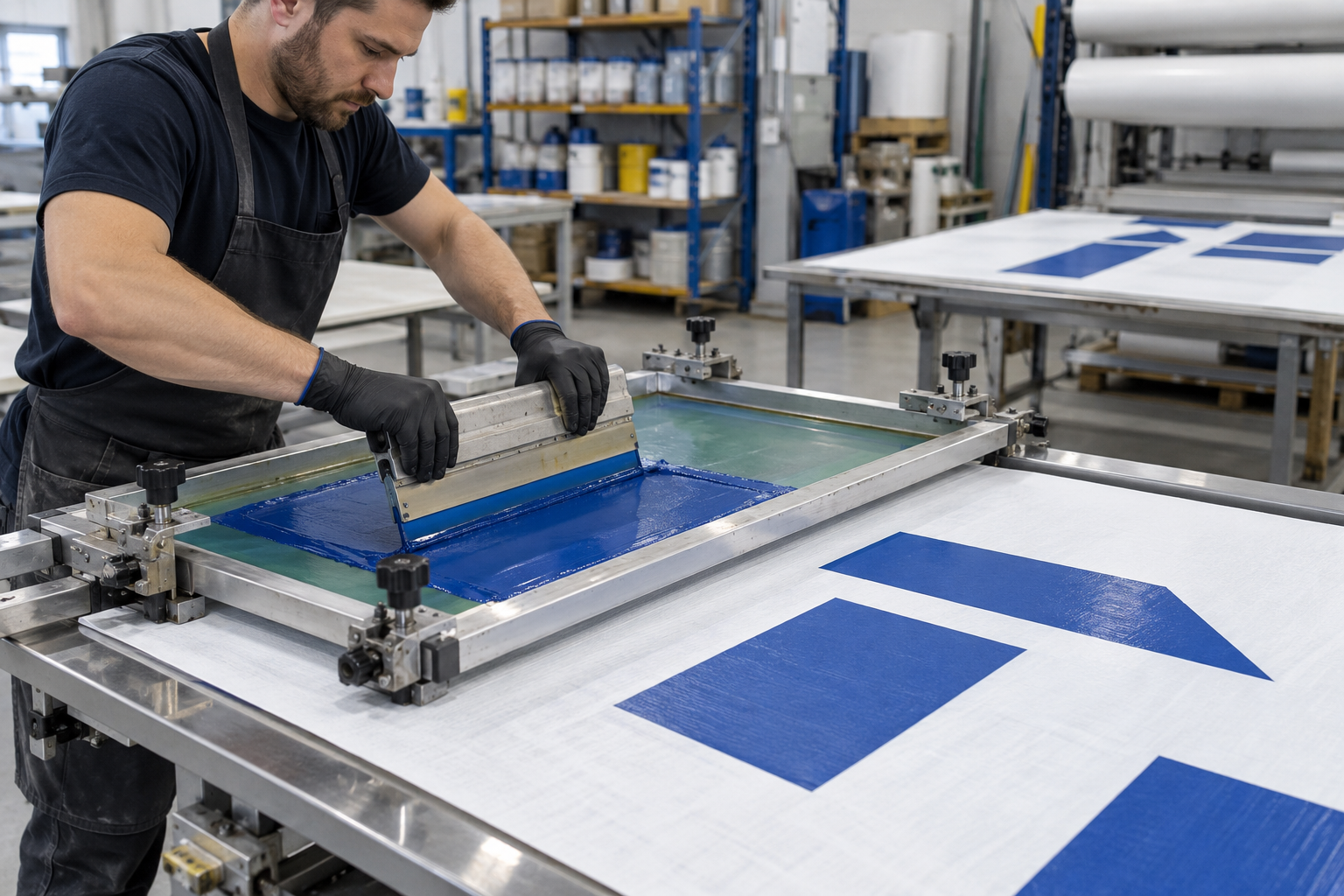

3. Screen Printing: A Practical Choice for Bold Graphics

Not every application needs photographic detail or high-speed variable data.

For signs, promotional pieces and specialty products, screen printing can offer a relatively heavy ink deposit and strong solid-color coverage.

The main consideration is drying.

Because Tyvek® does not absorb ink like conventional paper, some ink systems may require more drying time. Production teams should also avoid excessive processing temperatures.

Screen printing is therefore most attractive when the project prioritizes:

• Solid colors

• High opacity

• Simple graphics

• Specialty inks

• Moderate production quantities

When should you consider screen printing?

Consider screen printing when coverage and visual impact are more important than high-speed variable printing.

For large repetitive orders, compare the economics with flexographic production before deciding.

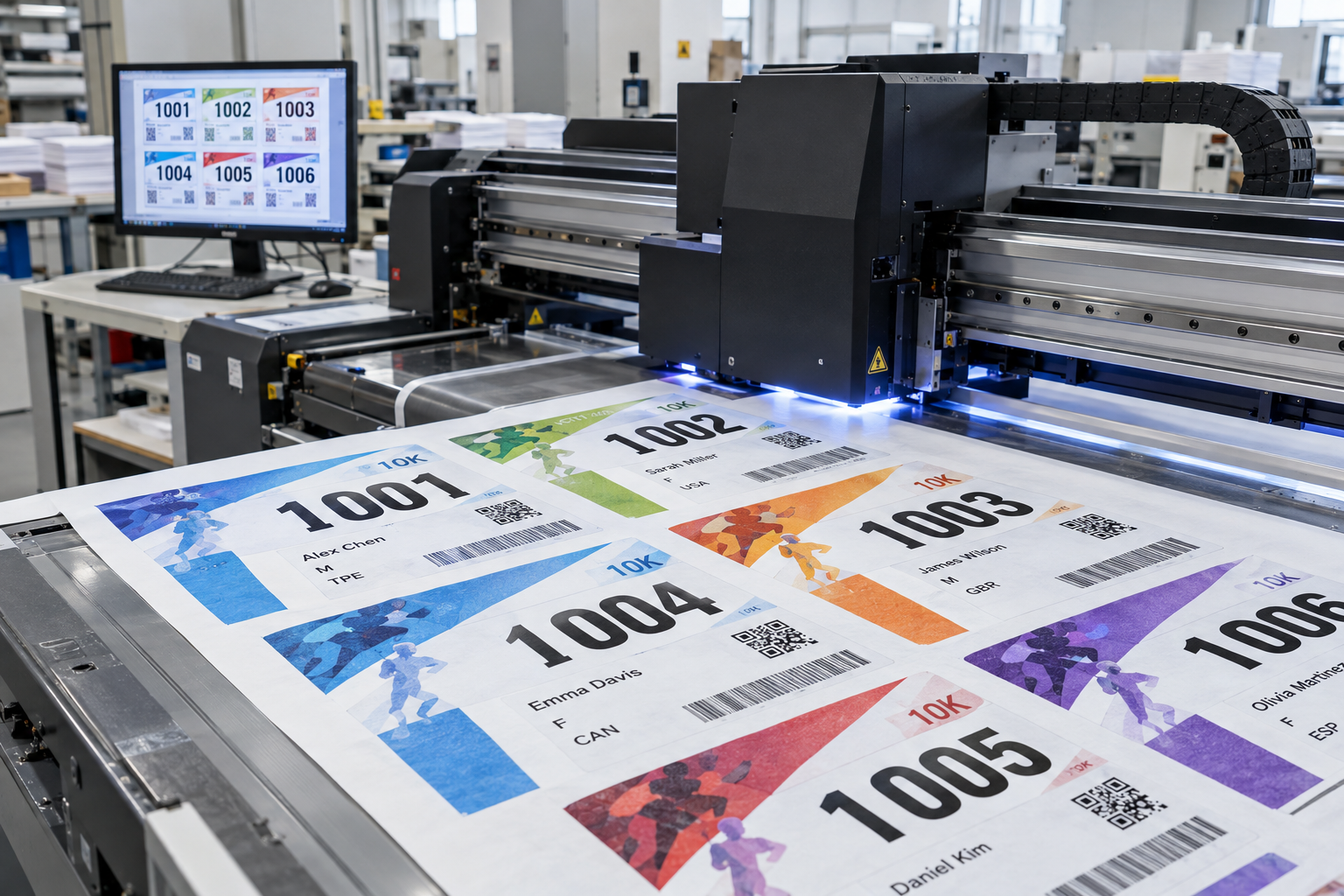

4. Digital Printing: Best for Flexibility and Variable Data

Digital printing becomes particularly valuable when every printed piece does not need to be identical.

Typical requirements include:

• Sequential numbering

• Personalized information

• Barcodes

• QR codes

• Short production runs

• Multiple designs within one order

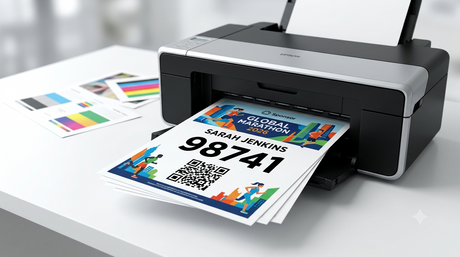

These requirements are common in race bibs, event identification, customized tags and variable-data products.

However, “digital printing” does not describe a single process.

UV Inkjet

UV inkjet can be suitable for many graphics applications because the ink is cured rather than relying on the substrate to absorb it.

Aqueous Inkjet

This requires more attention.

For high-quality aqueous inkjet printing, a suitable inkjet-receptive coating may be required. The coating helps control ink absorption, drying, dot definition and image quality.

This is especially important when printing:

• Small text

• Barcodes

• QR codes

• Variable numbers

• Detailed graphics

If your production uses a desktop or industrial aqueous inkjet printer, the printer model and ink type should be confirmed before selecting the material.

Toner and Laser Systems

Conventional laser printing should not automatically be considered suitable because the fusing process can involve temperatures that are too high for the material.

Compatibility should therefore be evaluated based on the specific machine and operating conditions, rather than assuming that all digital equipment works in the same way.

When should you consider digital printing?

Digital printing is generally the strongest option when the priority is short runs, customization, rapid job changes or variable information.

The Printing Method Is Only Half of the Decision

One of the most common procurement mistakes is selecting material based only on the printing process.

For example:

“We need material for inkjet printing.”

That is not enough information for a reliable recommendation.

Two customers using inkjet printers may require different material configurations because one is producing indoor tags while another is producing race bibs exposed to rain and repeated handling.

A better material-selection process considers four factors together:

Printing Equipment

Provide the exact press or printer model whenever possible.

Ink System

Water-based, UV-curable and other ink technologies interact differently with the material surface.

Finished Application

A wristband, race bib, label and outdoor sign have different requirements for flexibility, handling and print durability.

Converting Process

If the material will be slit, die-cut, punched, folded, laminated or otherwise processed after printing, those requirements should be identified before production.

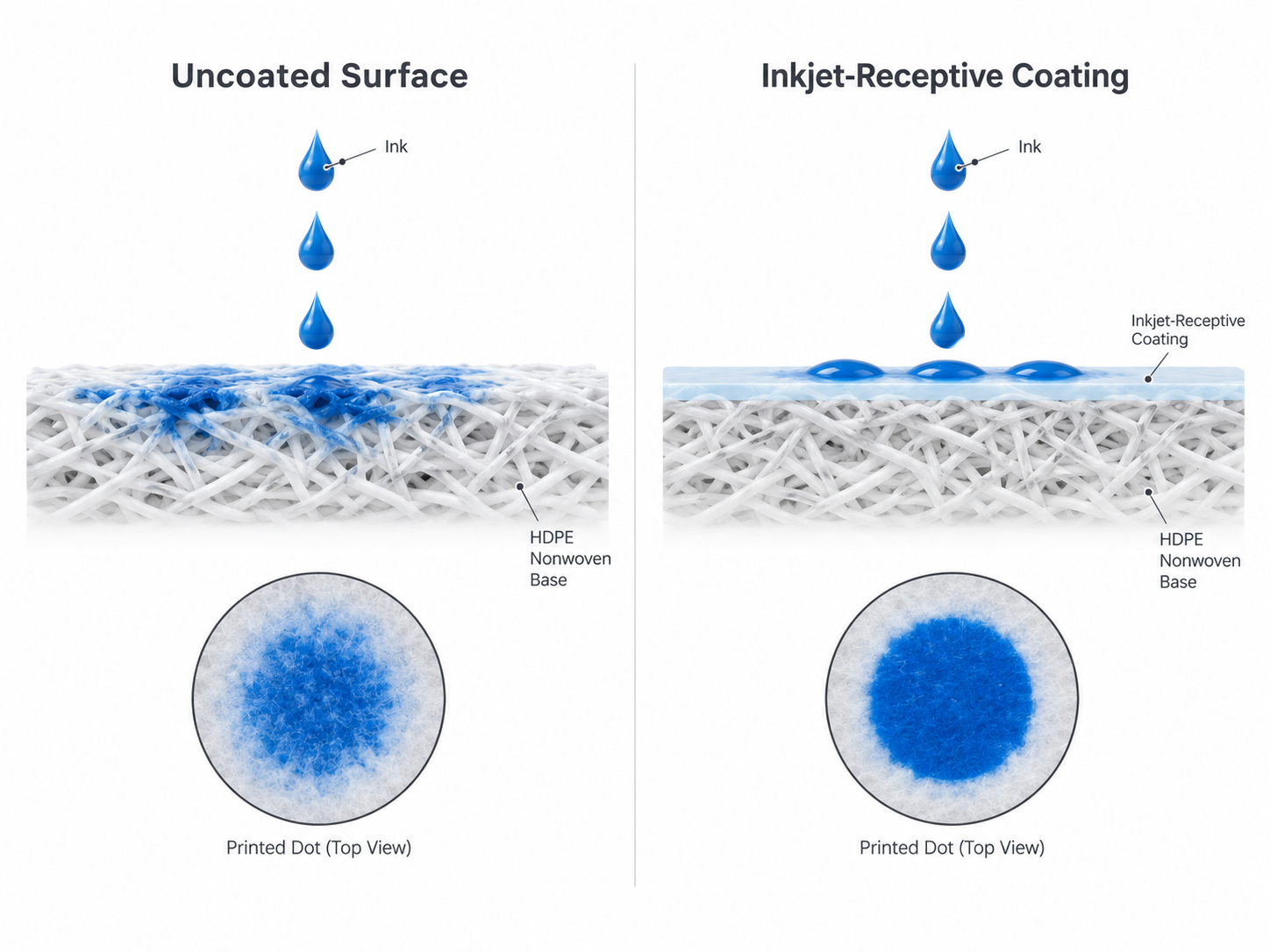

Do You Need Coated or Uncoated Material?

This is particularly important for digital printing.

Uncoated material can be suitable for a number of traditional and digital printing technologies, but some inkjet systems require a specially prepared surface.

A printable coating may be used to improve characteristics such as:

• Ink receptivity

• Drying

• Dot definition

• Color reproduction

• Smudge resistance

This does not mean that coated material is automatically better.

If the customer's printing process already works effectively on the original surface, adding an unnecessary coating may increase processing cost without providing a meaningful benefit.

The right question is therefore:

Does your printing system require a modified surface?

This should be established through equipment information and sample testing.

Roll or Sheet? Match the Format to Your Production Line

Printing compatibility is only useful if the material also fits the customer's equipment.

For roll-fed production, buyers should specify:

• Roll width

• Roll diameter

• Core diameter

• Winding requirements

• Quantity per roll

For sheet-fed production, confirm:

• Sheet width and length

• Cutting tolerance

• Quantity per pack

• Feeding requirements

This is particularly important for converters because an unsuitable roll specification can create unnecessary rewinding, slitting or material waste even when print performance itself is acceptable.

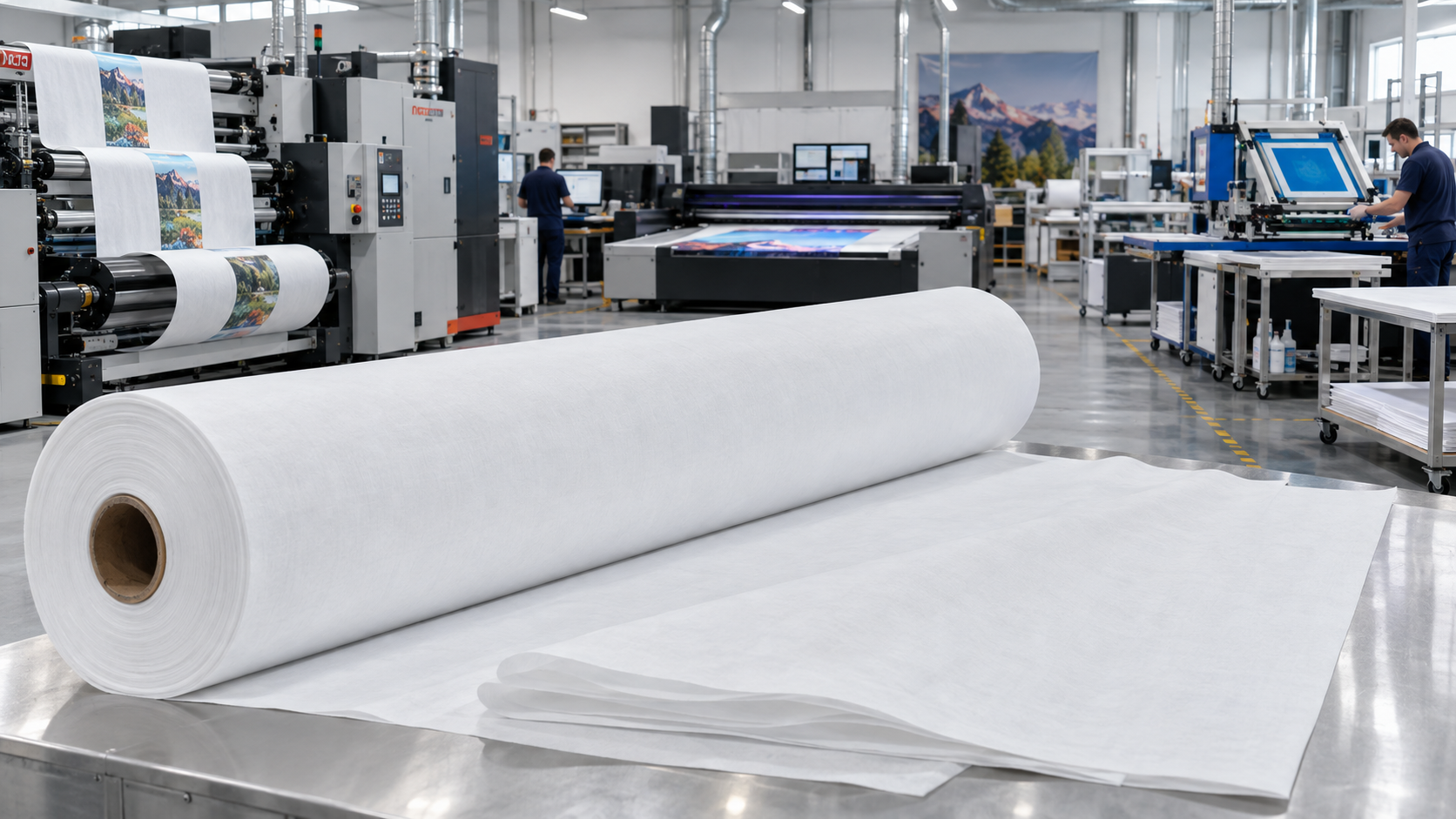

What Should You Test Before a Bulk Order?

For a new printing project, a sample should be tested under conditions that are as close as possible to actual production.

A useful test should answer more than “Does it print?”

Check:

Ink adhesion — Does the image remain stable after printing and handling?

Drying or curing — Can the material continue through production without smearing or blocking?

Fine-detail reproduction — Are small text, barcodes and QR codes clear?

Converting performance — Does printing remain stable after cutting, folding or punching?

End-use performance — Does the finished product perform as expected under the conditions in which it will actually be used?

For B2B procurement, this type of production trial is much more valuable than choosing a material solely from a product description.

Information to Send Before Requesting a Quote

If you are sourcing Tyvek® material for a printing project, providing the following information can significantly shorten the material-selection and quotation process:

If the exact material grade is not yet known, start with the printing method, equipment and final application rather than guessing a specification.

FAQ About Printing on Tyvek® Material

Can Tyvek® material be printed by flexographic printing?

Flexographic printing is commonly used for roll-fed applications. Ink selection, drying conditions, web tension and the specific material configuration should be confirmed before production.

Does aqueous inkjet printing require a coating?

For high-quality aqueous inkjet applications, a suitable inkjet-receptive coating may be required. Compatibility depends on the printer, ink and required print performance.

Is UV printing suitable for Tyvek® material?

UV and UV inkjet technologies can be suitable for certain applications. Adhesion, curing conditions and post-print converting performance should be tested for the actual production setup.

Can conventional laser printers be used?

Conventional laser systems are generally problematic because of their high fusing temperatures. Compatibility should only be determined for the specific equipment and material configuration.

Should we request samples before a bulk order?

For a new printing process or application, yes. Testing the material with the actual equipment and ink system is one of the most effective ways to reduce bulk-order risk.

Start With Your Printing Process, Not Just a Material Specification

For commercial printers, converters and product manufacturers, the most useful material recommendation starts with the actual production conditions.

LZ New Material can supply Tyvek® material in roll or sheet formats and provide converting options based on project requirements.

If additional surface preparation is required for a specific printing process, provide your equipment and ink information so the appropriate material configuration can be evaluated before bulk production.

For a faster quotation or sample evaluation, send us:

Printing method + printer model + ink type + required size + application + quantity + destination.

Request a Sample for Printing Test

Test the material on your production equipment first, confirm the specification, and then proceed to bulk purchasing.
